Boardcore::Sensor< Data > Class Template Reference

Base sensor class with has to be extended by any sensor driver. More...

#include <Sensor.h>

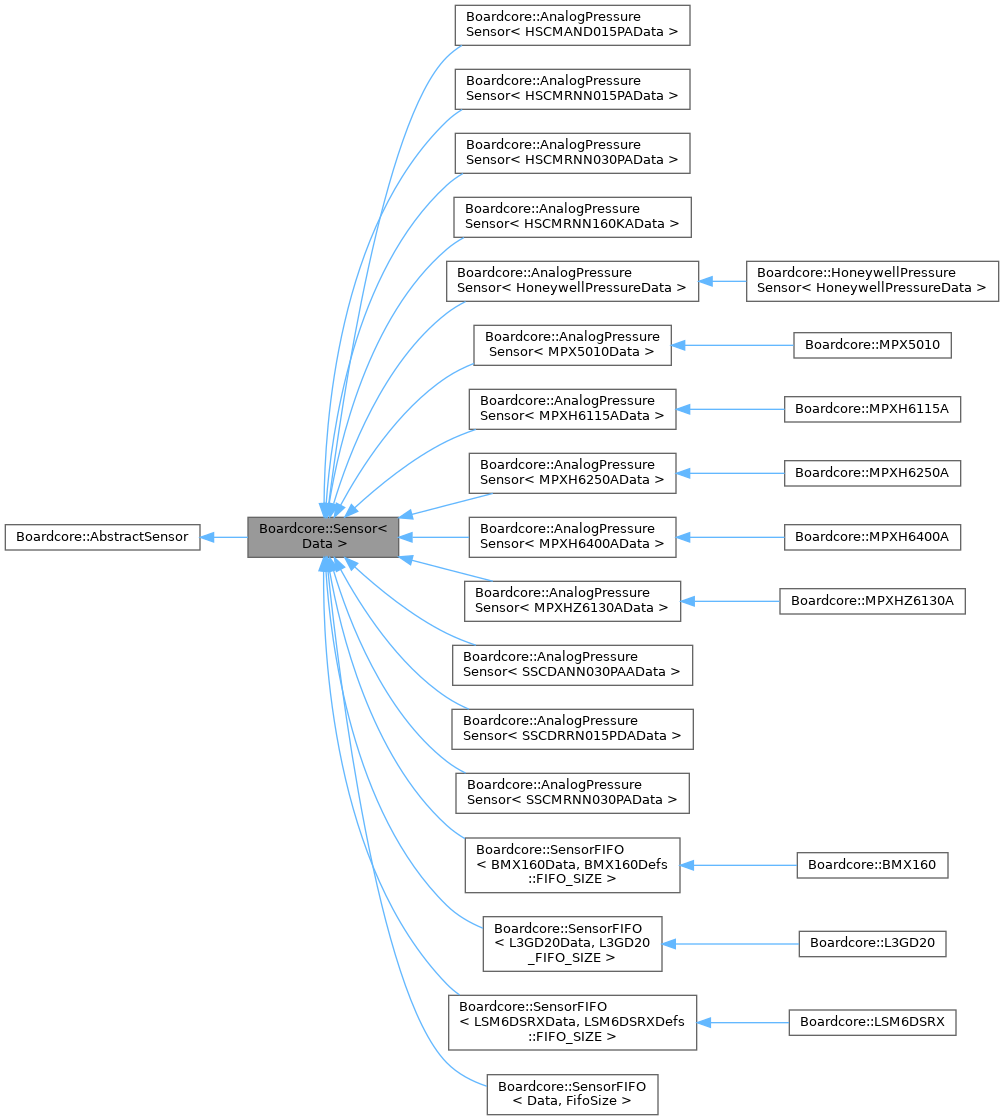

Inheritance diagram for Boardcore::Sensor< Data >:

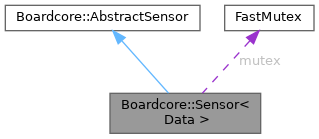

Collaboration diagram for Boardcore::Sensor< Data >:

Public Types
using	DataType = Data

Public Member Functions
	Sensor ()
	Sensor (Sensor &&other)
virtual	~Sensor ()
void	sample () override
	Sample the sensor.
virtual Data	getLastSample ()
Public Member Functions inherited from Boardcore::AbstractSensor
virtual	~AbstractSensor ()
virtual bool	init ()=0
	Initialize the sensor.
virtual bool	selfTest ()=0
	Check if the sensor is working.
SensorErrors	getLastError ()
	Get last error for debugging purposes. Avoid silent fails.

Protected Member Functions
virtual DataType	sampleImpl ()=0
	Read a data sample from the sensor. In case of errors, the method should return the last available correct sample.

Protected Attributes
DataType	lastSample
miosix::FastMutex	mutex
Protected Attributes inherited from Boardcore::AbstractSensor
SensorErrors	lastError = SensorErrors::NO_ERRORS

Detailed Description

template<typename Data>
class Boardcore::Sensor< Data >

Base sensor class with has to be extended by any sensor driver.

A sensor driver can define a custom data structure extending any combination of base sensors data structures, defined in SensorData.h.

Definition at line 90 of file Sensor.h.

Member Typedef Documentation

DataType

template<typename Data >

using Boardcore::Sensor< Data >::DataType = Data

Definition at line 93 of file Sensor.h.

Constructor & Destructor Documentation

Sensor() [1/2]

template<typename Data >

Boardcore::Sensor< Data >::Sensor ( )

inline

Definition at line 110 of file Sensor.h.

Sensor() [2/2]

template<typename Data >

Boardcore::Sensor< Data >::Sensor ( Sensor< Data > && other )

inline

Definition at line 112 of file Sensor.h.

~Sensor()

template<typename Data >

virtual Boardcore::Sensor< Data >::~Sensor ( )

inlinevirtual

Definition at line 114 of file Sensor.h.

Member Function Documentation

getLastSample()

template<typename Data >

virtual Data Boardcore::Sensor< Data >::getLastSample ( )

inlinevirtual

Returns

last available sample from this sensor

Definition at line 131 of file Sensor.h.

sample()

template<typename Data >

void Boardcore::Sensor< Data >::sample ( )

inlineoverridevirtual

Sample the sensor.

Implements Boardcore::AbstractSensor.

Definition at line 116 of file Sensor.h.

sampleImpl()

template<typename Data >

virtual DataType Boardcore::Sensor< Data >::sampleImpl ( )

protectedpure virtual

Read a data sample from the sensor. In case of errors, the method should return the last available correct sample.

Returns

sensor data sample

Implemented in Boardcore::L3GD20, Boardcore::InternalADC, Boardcore::ADS1118, Boardcore::ADS131M04, Boardcore::ADS131M08, Boardcore::AnalogLoadCell, Boardcore::BatteryVoltageSensor, Boardcore::CurrentSensor, Boardcore::Pitot, Boardcore::AnalogPressureSensor< AnalogPressureData >, Boardcore::AnalogPressureSensor< HoneywellPressureData >, Boardcore::AnalogPressureSensor< HSCMAND015PAData >, Boardcore::AnalogPressureSensor< HSCMRNN015PAData >, Boardcore::AnalogPressureSensor< HSCMRNN030PAData >, Boardcore::AnalogPressureSensor< HSCMRNN160KAData >, Boardcore::AnalogPressureSensor< MPX5010Data >, Boardcore::AnalogPressureSensor< MPXH6115AData >, Boardcore::AnalogPressureSensor< MPXH6250AData >, Boardcore::AnalogPressureSensor< MPXH6400AData >, Boardcore::AnalogPressureSensor< MPXHZ6130AData >, Boardcore::AnalogPressureSensor< SSCDANN030PAAData >, Boardcore::AnalogPressureSensor< SSCDRRN015PDAData >, Boardcore::AnalogPressureSensor< SSCMRNN030PAData >, Boardcore::SoftwareDifferentialPressureSensor< FirstPressureData, SecondPressureData >, Boardcore::TrafagPressureSensor, Boardcore::TwoPointAnalogLoadCell, Boardcore::BME280, Boardcore::BME280I2C, Boardcore::BMP280, Boardcore::BMP280I2C, Boardcore::BMX160, Boardcore::BMX160WithCorrection, Boardcore::H3LIS331DL, Boardcore::HX711, Boardcore::LIS2MDL, Boardcore::LIS331HH, Boardcore::LIS3MDL, Boardcore::LPS22DF, Boardcore::LPS28DFW, Boardcore::LPS331AP, Boardcore::LSM6DSRX, Boardcore::MAX31855, Boardcore::MAX31856, Boardcore::MAX6675, Boardcore::MBLoadCell, Boardcore::MPU9250, Boardcore::MS5803, Boardcore::MS5803I2C, Boardcore::ND015A, Boardcore::ND015D, Boardcore::RotatedIMU, Boardcore::UBXGPSSerial, Boardcore::UBXGPSSpi, Boardcore::VN100Serial, Boardcore::VN100Spi, and Boardcore::VN300.

Member Data Documentation

lastSample

template<typename Data >

DataType Boardcore::Sensor< Data >::lastSample

protected

Definition at line 96 of file Sensor.h.

mutex

template<typename Data >

miosix::FastMutex Boardcore::Sensor< Data >::mutex

protected

Definition at line 107 of file Sensor.h.

---

The documentation for this class was generated from the following file:

• src/shared/sensors/Sensor.h
