#include <ND015D.h>

Inheritance diagram for Boardcore::ND015D:

[legend]

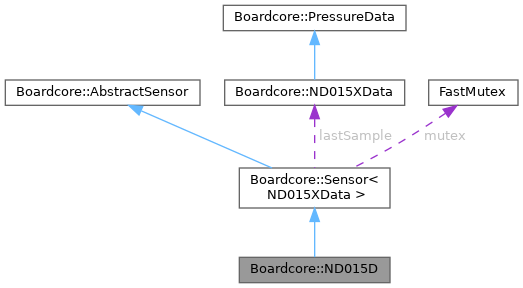

Collaboration diagram for Boardcore::ND015D:

[legend]

Public Types
enum class	FullScaleRange : uint8_t { FS_1 = 0x02 , FS_2 = 0x03 , FS_4 = 0x04 , FS_5 = 0x05 , FS_10 = 0x06 , FS_15 = 0x07 }

enum class	IOWatchdogEnable : uint8_t { DISABLED = 0x00 , ENABLED = 0x01 }

enum class	BWLimitFilter : uint8_t { BWL_1 = 0x00 , BWL_2 = 0x01 , BWL_5 = 0x02 , BWL_10 = 0x03 , BWL_20 = 0x04 , BWL_50 = 0x05 , BWL_100 = 0x06 , BWL_200 = 0x07 }

enum class	NotchEnable : uint8_t { DISABLED = 0x00 , ENABLED = 0x01 }

Public Types inherited from Boardcore::Sensor< ND015XData >
using	DataType = ND015XData

Public Member Functions
	ND015D (SPIBusInterface &bus, miosix::GpioPin cs, SPIBusConfig spiConfig, DMAStreamGuard streamRx, DMAStreamGuard streamTx, std::chrono::nanoseconds timeoutDma, FullScaleRange fsr=FullScaleRange::FS_2, IOWatchdogEnable iow=IOWatchdogEnable::DISABLED, BWLimitFilter bwl=BWLimitFilter::BWL_200, NotchEnable ntc=NotchEnable::ENABLED, uint8_t odr=0x1C)
	Constructor for the ND015D sensor.

	ND015D (SPIBusInterface &bus, miosix::GpioPin cs, SPIBusConfig spiConfig, FullScaleRange fsr=FullScaleRange::FS_2, IOWatchdogEnable iow=IOWatchdogEnable::DISABLED, BWLimitFilter bwl=BWLimitFilter::BWL_200, NotchEnable ntc=NotchEnable::ENABLED, uint8_t odr=0x1C)
	Constructor for the ND015D sensor.

bool	init () override
	Initializes the sensor.

bool	selfTest () override
	Not implemented.

void	setOutputDataRate (uint8_t odr)
	function to set the output data rate

void	setFullScaleRange (FullScaleRange fsr)
	Sets the full-scale range for the sensor.

void	setIOWatchdog (IOWatchdogEnable iow)
	Enables or disables the IO watchdog.

void	setBWLimitFilter (BWLimitFilter bwl)
	Sets the bandwidth limit filter for the sensor.

void	setNotch (NotchEnable ntc)
	Enables or disables the notch filter.

bool	checkModelMatch ()
	Checks if the sensor model matches the expected model.

void	setOffset (float offset)
	Set the offset of this sensor. The offset is stored as a int16_t and can be both postive or negative.

void	updateOffset (float offset)
	Modify the offset of this sensor. The offset is stored as a int16_t and can be both postive or negative.

float	getOffset ()
	Get the current offset of this sensor. The offset is stored as a int16_t and can be both postive or negative.

Public Member Functions inherited from Boardcore::Sensor< ND015XData >
	Sensor ()

	Sensor (Sensor &&other)

virtual	~Sensor ()

void	sample () override
	Sample the sensor.

virtual ND015XData	getLastSample ()

Public Member Functions inherited from Boardcore::AbstractSensor
virtual	~AbstractSensor ()

SensorErrors	getLastError ()
	Get last error for debugging purposes. Avoid silent fails.

Static Public Member Functions
static float	rangeToPressure (FullScaleRange fsr)
	Converts the FullScale value to its corresponding range.

static SPIBusConfig	getDefaultSPIConfig ()
	Constructs the default config for the SPI bus.

Static Public Attributes
static const char	MODEL_NAME [] = "ND015D"

Protected Member Functions
ND015XData	sampleImpl () override
	Read a data sample from the sensor. In case of errors, the method should return the last available correct sample.

Additional Inherited Members
Protected Attributes inherited from Boardcore::Sensor< ND015XData >
DataType	lastSample

miosix::FastMutex	mutex

Protected Attributes inherited from Boardcore::AbstractSensor
SensorErrors	lastError = SensorErrors::NO_ERRORS

Detailed Description

Definition at line 35 of file ND015D.h.

Member Enumeration Documentation

◆ BWLimitFilter

enum class Boardcore::ND015D::BWLimitFilter : uint8_t

strong

Enumerator
BWL_1
BWL_2
BWL_5
BWL_10
BWL_20
BWL_50
BWL_100
BWL_200

Definition at line 68 of file ND015D.h.

◆ FullScaleRange

enum class Boardcore::ND015D::FullScaleRange : uint8_t

strong

The datasheet is unclear about the unit of measure, it could be either psi or inH2O but I believe it's the latter

Enumerator
FS_1
FS_2
FS_4
FS_5
FS_10
FS_15

Definition at line 44 of file ND015D.h.

◆ IOWatchdogEnable

enum class Boardcore::ND015D::IOWatchdogEnable : uint8_t

strong

Enumerator
DISABLED
ENABLED

Definition at line 62 of file ND015D.h.

◆ NotchEnable

enum class Boardcore::ND015D::NotchEnable : uint8_t

strong

Enumerator
DISABLED
ENABLED

Definition at line 80 of file ND015D.h.

Constructor & Destructor Documentation

◆ ND015D() [1/2]

Boardcore::ND015D::ND015D	(	SPIBusInterface &	bus,
		miosix::GpioPin	cs,
		SPIBusConfig	spiConfig,
		DMAStreamGuard *	streamRx,
		DMAStreamGuard *	streamTx,
		std::chrono::nanoseconds	timeoutDma,
		FullScaleRange	fsr = `FullScaleRange::FS_2`,
		IOWatchdogEnable	iow = `IOWatchdogEnable::DISABLED`,
		BWLimitFilter	bwl = `BWLimitFilter::BWL_200`,
		NotchEnable	ntc = `NotchEnable::ENABLED`,
		uint8_t	odr = `0x1C`
	)

Constructor for the ND015D sensor.

Parameters

bus	SPI bus interface.
cs	Chip select GPIO pin.
spiConfig	SPI bus configuration.
streamRx	Dma receiving stream for the spi bus.
streamTx	Dma transmitting stream for the spi bus.
timeoutDma	Timeout for the dma transactions.

Definition at line 53 of file ND015D.cpp.

◆ ND015D() [2/2]

Boardcore::ND015D::ND015D	(	SPIBusInterface &	bus,
		miosix::GpioPin	cs,
		SPIBusConfig	spiConfig,
		FullScaleRange	fsr = `FullScaleRange::FS_2`,
		IOWatchdogEnable	iow = `IOWatchdogEnable::DISABLED`,
		BWLimitFilter	bwl = `BWLimitFilter::BWL_200`,
		NotchEnable	ntc = `NotchEnable::ENABLED`,
		uint8_t	odr = `0x1C`
	)

Constructor for the ND015D sensor.

Parameters

bus	SPI bus interface.
cs	Chip select GPIO pin.
spiConfig	SPI bus configuration.

Definition at line 64 of file ND015D.cpp.

Member Function Documentation

◆ checkModelMatch()

bool Boardcore::ND015D::checkModelMatch ( )

Checks if the sensor model matches the expected model.

Returns: True if the model matches, false otherwise.

Warning: The function might return false even when it should not as the SPI transaction sometimes ads some zeroes when it should not. This is because the sensore requires a clock cycle greater than the one we can provide

Definition at line 93 of file ND015D.cpp.

◆ getDefaultSPIConfig()

SPIBusConfig Boardcore::ND015D::getDefaultSPIConfig ( )

static

Constructs the default config for the SPI bus.

Returns: The default SPIBusConfig object.

Definition at line 37 of file ND015D.cpp.

◆ getOffset()

float Boardcore::ND015D::getOffset ( )

Get the current offset of this sensor. The offset is stored as a int16_t and can be both postive or negative.

Definition at line 204 of file ND015D.cpp.

◆ init()

bool Boardcore::ND015D::init ( )

overridevirtual

Initializes the sensor.

Returns: Always returns true.

Implements Boardcore::AbstractSensor.

Definition at line 73 of file ND015D.cpp.

◆ rangeToPressure()

float Boardcore::ND015D::rangeToPressure ( FullScaleRange fsr )

static

Converts the FullScale value to its corresponding range.

Parameters

fsr	FullScale value.

Returns: Pressure range.

Definition at line 148 of file ND015D.cpp.

◆ sampleImpl()

ND015XData Boardcore::ND015D::sampleImpl ( )

overrideprotectedvirtual

Read a data sample from the sensor. In case of errors, the method should return the last available correct sample.

Returns: sensor data sample

Implements Boardcore::Sensor< ND015XData >.

Definition at line 206 of file ND015D.cpp.

◆ selfTest()

bool Boardcore::ND015D::selfTest ( )

overridevirtual

Not implemented.

Returns: Always returns true.

Implements Boardcore::AbstractSensor.

Definition at line 91 of file ND015D.cpp.

◆ setBWLimitFilter()

void Boardcore::ND015D::setBWLimitFilter ( BWLimitFilter bwl )

Sets the bandwidth limit filter for the sensor.

Parameters

bwl	Bandwidth limit filter setting.

Definition at line 180 of file ND015D.cpp.

◆ setFullScaleRange()

void Boardcore::ND015D::setFullScaleRange ( FullScaleRange fsr )

Sets the full-scale range for the sensor.

Parameters

fs	Full-scale range.

Definition at line 135 of file ND015D.cpp.

◆ setIOWatchdog()

void Boardcore::ND015D::setIOWatchdog ( IOWatchdogEnable iow )

Enables or disables the IO watchdog.

Parameters

iow	IO watchdog setting.

Definition at line 169 of file ND015D.cpp.

◆ setNotch()

void Boardcore::ND015D::setNotch ( NotchEnable ntc )

Enables or disables the notch filter.

Parameters

ntc	Notch filter setting.

Definition at line 191 of file ND015D.cpp.

◆ setOffset()

void Boardcore::ND015D::setOffset ( float offset )

Set the offset of this sensor. The offset is stored as a int16_t and can be both postive or negative.

Parameters

The	value the offset should be set to

Definition at line 202 of file ND015D.cpp.

◆ setOutputDataRate()

void Boardcore::ND015D::setOutputDataRate ( uint8_t odr )

function to set the output data rate

Parameters

odr	output data rate for the sensor, the actual odr is calculated as 444Hz / odr. Allowed values are 0x00 to 0xFF, 0x00 will select the auto-select rate mode

Definition at line 124 of file ND015D.cpp.

◆ updateOffset()

void Boardcore::ND015D::updateOffset ( float offset )

Modify the offset of this sensor. The offset is stored as a int16_t and can be both postive or negative.

Parameters

The	value to be added to the current offset

Definition at line 203 of file ND015D.cpp.

Member Data Documentation

◆ bwl

BWLimitFilter Boardcore::ND015D::bwl

Definition at line 238 of file ND015D.h.

◆ fsr

FullScaleRange Boardcore::ND015D::fsr

Definition at line 236 of file ND015D.h.

◆ iow

IOWatchdogEnable Boardcore::ND015D::iow

Definition at line 237 of file ND015D.h.

◆ MODEL_NAME

const char Boardcore::ND015D::MODEL_NAME = "ND015D"

static

Definition at line 38 of file ND015D.h.

◆ ntc

NotchEnable Boardcore::ND015D::ntc

Definition at line 239 of file ND015D.h.

◆ odr

uint8_t Boardcore::ND015D::odr

Definition at line 235 of file ND015D.h.

The documentation for this class was generated from the following files:

src/shared/sensors/ND015X/ND015D.h
src/shared/sensors/ND015X/ND015D.cpp
