Boardcore::InternalADC Class Reference

Driver for stm32 internal ADC. More...

#include <InternalADC.h>

Inheritance diagram for Boardcore::InternalADC:

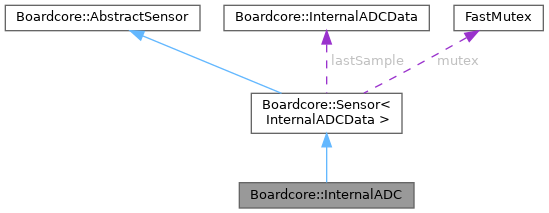

Collaboration diagram for Boardcore::InternalADC:

Public Types
enum	Channel : uint8_t {   CH0 = 0 , CH1 , CH2 , CH3 ,   CH4 , CH5 , CH6 , CH7 ,   CH8 , CH9 , CH10 , CH11 ,   CH12 , CH13 , CH14 , CH15 ,   CH16 , CH17 , CH18 , CH_NUM }
	ADC channels enumeration. More...
enum	SampleTime : uint8_t {   CYCLES_15 = 0x1 , CYCLES_28 = 0x2 , CYCLES_56 = 0x3 , CYCLES_84 = 0x4 ,   CYCLES_112 = 0x5 , CYCLES_144 = 0x6 , CYCLES_480 = 0x7 }
	Conversion sample time. See reference manual. More...
Public Types inherited from Boardcore::Sensor< InternalADCData >
using	DataType

Public Member Functions
	InternalADC (ADC_TypeDef *adc)
	Resets the ADC configuration and automatically enables the peripheral clock.
	~InternalADC ()
bool	init () override
	ADC Initialization.
bool	selfTest () override
	Check if the sensor is working.
InternalADCData	sampleImpl () override
	Read a data sample from the sensor. In case of errors, the method should return the last available correct sample.
void	enableChannel (Channel channel, SampleTime sampleTime=CYCLES_480)
void	disableChannel (Channel channel)
void	enableTemperature (SampleTime sampleTime=CYCLES_480)
void	disableTemperature ()
void	enableVbat (SampleTime sampleTime=CYCLES_480)
void	disableVbat ()
ADCData	getVoltage (Channel channel)
TemperatureData	getTemperature ()
ADCData	getVbatVoltage ()
Public Member Functions inherited from Boardcore::Sensor< InternalADCData >
	Sensor ()
	Sensor (Sensor &&other)
virtual	~Sensor ()
void	sample () override
	Sample the sensor.
virtual InternalADCData	getLastSample ()
Public Member Functions inherited from Boardcore::AbstractSensor
virtual	~AbstractSensor ()
SensorErrors	getLastError ()
	Get last error for debugging purposes. Avoid silent fails.

Additional Inherited Members
Protected Attributes inherited from Boardcore::Sensor< InternalADCData >
DataType	lastSample
miosix::FastMutex	mutex
Protected Attributes inherited from Boardcore::AbstractSensor
SensorErrors	lastError = SensorErrors::NO_ERRORS

Detailed Description

Driver for stm32 internal ADC.

Allows conversions on multiple channels with per-channel sample time.

The driver uses basic ADC features, that is the single conversion mode. A previous version of the driver featured injected and regular channels with also DMA. Since ADC conversion time is very low, the driver has been simplified to provide better usability and simpler implementation.

Warning

This driver has been tested on f205, f407, f429, f767 and f769

Definition at line 50 of file InternalADC.h.

Member Enumeration Documentation

Channel

enum Boardcore::InternalADC::Channel : uint8_t

ADC channels enumeration.

Enumerator
CH0
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
CH9
CH10
CH11
CH12
CH13
CH14
CH15
CH16
CH17
CH18
CH_NUM

Definition at line 56 of file InternalADC.h.

SampleTime

enum Boardcore::InternalADC::SampleTime : uint8_t

Conversion sample time. See reference manual.

CYCLES_3 is not exposed because in 12-bit mode the minimum is 15

Enumerator
CYCLES_15
CYCLES_28
CYCLES_56
CYCLES_84
CYCLES_112
CYCLES_144
CYCLES_480

Definition at line 85 of file InternalADC.h.

Constructor & Destructor Documentation

InternalADC()

Boardcore::InternalADC::InternalADC ( ADC_TypeDef * adc )

explicit

Resets the ADC configuration and automatically enables the peripheral clock.

Definition at line 68 of file InternalADC.cpp.

~InternalADC()

Boardcore::InternalADC::~InternalADC

(

)

Definition at line 90 of file InternalADC.cpp.

Member Function Documentation

disableChannel()

void Boardcore::InternalADC::disableChannel

(

Channel

channel

)

Definition at line 179 of file InternalADC.cpp.

disableTemperature()

void Boardcore::InternalADC::disableTemperature

(

)

Definition at line 190 of file InternalADC.cpp.

disableVbat()

void Boardcore::InternalADC::disableVbat

(

)

Definition at line 203 of file InternalADC.cpp.

enableChannel()

void Boardcore::InternalADC::enableChannel	(	Channel	channel,
		SampleTime	sampleTime = CYCLES_480 )

Definition at line 172 of file InternalADC.cpp.

enableTemperature()

void Boardcore::InternalADC::enableTemperature

(

SampleTime

sampleTime = CYCLES_480

)

Definition at line 184 of file InternalADC.cpp.

enableVbat()

void Boardcore::InternalADC::enableVbat

(

SampleTime

sampleTime = CYCLES_480

)

Definition at line 197 of file InternalADC.cpp.

getTemperature()

TemperatureData Boardcore::InternalADC::getTemperature

(

)

Definition at line 219 of file InternalADC.cpp.

getVbatVoltage()

ADCData Boardcore::InternalADC::getVbatVoltage

(

)

Definition at line 227 of file InternalADC.cpp.

getVoltage()

ADCData Boardcore::InternalADC::getVoltage

(

Channel

channel

)

Definition at line 210 of file InternalADC.cpp.

init()

bool Boardcore::InternalADC::init ( )

overridevirtual

ADC Initialization.

The ADC clock must be set beforehand as well as GPIO configuration. Also the clock for the analog circuitry should be set accordingly to the device datasheet.

Implements Boardcore::AbstractSensor.

Definition at line 96 of file InternalADC.cpp.

sampleImpl()

InternalADCData Boardcore::InternalADC::sampleImpl ( )

overridevirtual

Read a data sample from the sensor. In case of errors, the method should return the last available correct sample.

Returns

sensor data sample

Quirk: the temperature and vbat sensors are enabled and then disabled. If left enabled they somehow disrupt other channels measurements. I did not find description of this behaviour anywhere but observed it during testing. Also the temperature sensors has a startup time of 10us. 12us is used because during test 10us were not enough. The startup time is the same for all Boardcore supported micros.

Implements Boardcore::Sensor< InternalADCData >.

Definition at line 106 of file InternalADC.cpp.

selfTest()

bool Boardcore::InternalADC::selfTest ( )

overridevirtual

Check if the sensor is working.

Returns

boolean indicating whether the sensor is correctly working or not

Implements Boardcore::AbstractSensor.

Definition at line 104 of file InternalADC.cpp.

---

The documentation for this class was generated from the following files:

• src/shared/drivers/adc/InternalADC.h
• src/shared/drivers/adc/InternalADC.cpp
