Boardcore::CurrentSensor Class Reference

Common class for current sensors. More...

#include <CurrentSensor.h>

Inheritance diagram for Boardcore::CurrentSensor:

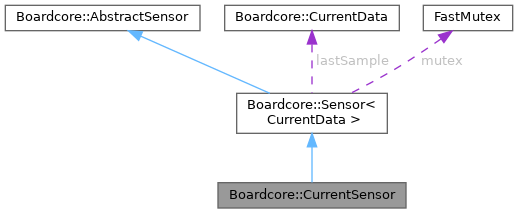

Collaboration diagram for Boardcore::CurrentSensor:

Public Member Functions
	CurrentSensor (std::function< ADCData()> getVoltage, std::function< float(float)> voltageToCurrent)
bool	init () override
	Initialize the sensor.
bool	selfTest () override
	Check if the sensor is working.
Public Member Functions inherited from Boardcore::Sensor< CurrentData >
	Sensor ()
	Sensor (Sensor &&other)
virtual	~Sensor ()
void	sample () override
	Sample the sensor.
virtual CurrentData	getLastSample ()
Public Member Functions inherited from Boardcore::AbstractSensor
virtual	~AbstractSensor ()
SensorErrors	getLastError ()
	Get last error for debugging purposes. Avoid silent fails.

Static Public Attributes
static constexpr int	MOVING_AVERAGE_N = 20

Protected Member Functions
CurrentData	sampleImpl () override
	< Converts the voltage value to pressure

Additional Inherited Members
Public Types inherited from Boardcore::Sensor< CurrentData >
using	DataType
Protected Attributes inherited from Boardcore::Sensor< CurrentData >
DataType	lastSample
miosix::FastMutex	mutex
Protected Attributes inherited from Boardcore::AbstractSensor
SensorErrors	lastError = SensorErrors::NO_ERRORS

Detailed Description

Common class for current sensors.

It needs a transfer function to convert the read voltage into current.

Definition at line 37 of file CurrentSensor.h.

Constructor & Destructor Documentation

CurrentSensor()

Boardcore::CurrentSensor::CurrentSensor ( std::function< ADCData()> getVoltage, std::function< float(float)> voltageToCurrent )

inline

Definition at line 42 of file CurrentSensor.h.

Member Function Documentation

init()

bool Boardcore::CurrentSensor::init ( )

inlineoverridevirtual

Initialize the sensor.

Returns

boolean value indicating whether the operation succeded or not

Implements Boardcore::AbstractSensor.

Definition at line 49 of file CurrentSensor.h.

sampleImpl()

CurrentData Boardcore::CurrentSensor::sampleImpl ( )

inlineoverrideprotectedvirtual

< Converts the voltage value to pressure

Implements Boardcore::Sensor< CurrentData >.

Definition at line 55 of file CurrentSensor.h.

selfTest()

bool Boardcore::CurrentSensor::selfTest ( )

inlineoverridevirtual

Check if the sensor is working.

Returns

boolean indicating whether the sensor is correctly working or not

Implements Boardcore::AbstractSensor.

Definition at line 51 of file CurrentSensor.h.

Member Data Documentation

MOVING_AVERAGE_N

constexpr int Boardcore::CurrentSensor::MOVING_AVERAGE_N = 20

staticconstexpr

Definition at line 40 of file CurrentSensor.h.

---

The documentation for this class was generated from the following file:

• src/shared/sensors/analog/CurrentSensor.h
