Boardcore::AnalogLoadCell Class Reference

#include <AnalogLoadCell.h>

Inheritance diagram for Boardcore::AnalogLoadCell:

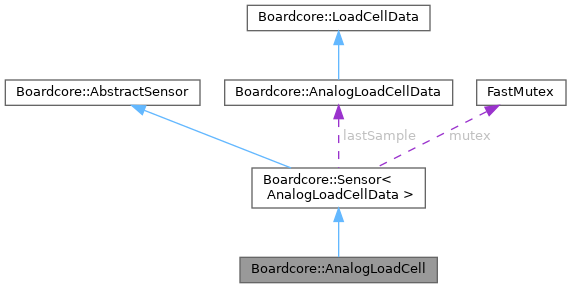

Collaboration diagram for Boardcore::AnalogLoadCell:

Public Member Functions
	AnalogLoadCell (std::function< ADCData()> getVoltage, const float mVtoV, const unsigned int fullScale, const float supplyVoltage=5)
bool	init () override
	Initialize the sensor.
bool	selfTest () override
	Check if the sensor is working.
void	setOffset (const float offset)
	Sets the offset that will be removed from the measured load.
void	updateOffset (float offset)
Public Member Functions inherited from Boardcore::Sensor< AnalogLoadCellData >
	Sensor ()
	Sensor (Sensor &&other)
virtual	~Sensor ()
void	sample () override
	Sample the sensor.
virtual AnalogLoadCellData	getLastSample ()
Public Member Functions inherited from Boardcore::AbstractSensor
virtual	~AbstractSensor ()
SensorErrors	getLastError ()
	Get last error for debugging purposes. Avoid silent fails.

Protected Member Functions
AnalogLoadCellData	sampleImpl () override
	Read a data sample from the sensor. In case of errors, the method should return the last available correct sample.

Additional Inherited Members
Public Types inherited from Boardcore::Sensor< AnalogLoadCellData >
using	DataType
Protected Attributes inherited from Boardcore::Sensor< AnalogLoadCellData >
DataType	lastSample
miosix::FastMutex	mutex
Protected Attributes inherited from Boardcore::AbstractSensor
SensorErrors	lastError = SensorErrors::NO_ERRORS

Detailed Description

Definition at line 34 of file AnalogLoadCell.h.

Constructor & Destructor Documentation

AnalogLoadCell()

Boardcore::AnalogLoadCell::AnalogLoadCell ( std::function< ADCData()> getVoltage, const float mVtoV, const unsigned int fullScale, const float supplyVoltage = 5 )

inline

Definition at line 37 of file AnalogLoadCell.h.

Member Function Documentation

init()

bool Boardcore::AnalogLoadCell::init ( )

inlineoverridevirtual

Initialize the sensor.

Returns

boolean value indicating whether the operation succeded or not

Implements Boardcore::AbstractSensor.

Definition at line 44 of file AnalogLoadCell.h.

sampleImpl()

AnalogLoadCellData Boardcore::AnalogLoadCell::sampleImpl ( )

inlineoverrideprotectedvirtual

Read a data sample from the sensor. In case of errors, the method should return the last available correct sample.

Returns

sensor data sample

Implements Boardcore::Sensor< AnalogLoadCellData >.

Definition at line 56 of file AnalogLoadCell.h.

selfTest()

bool Boardcore::AnalogLoadCell::selfTest ( )

inlineoverridevirtual

Check if the sensor is working.

Returns

boolean indicating whether the sensor is correctly working or not

Implements Boardcore::AbstractSensor.

Definition at line 46 of file AnalogLoadCell.h.

setOffset()

void Boardcore::AnalogLoadCell::setOffset ( const float offset )

inline

Sets the offset that will be removed from the measured load.

Definition at line 51 of file AnalogLoadCell.h.

updateOffset()

void Boardcore::AnalogLoadCell::updateOffset ( float offset )

inline

Definition at line 53 of file AnalogLoadCell.h.

---

The documentation for this class was generated from the following file:

• src/shared/sensors/analog/AnalogLoadCell.h
