Driver to communicate with a TLB digital-analog weight transmitter attached to a loadcell. More...

#include <MBLoadCell.h>

Inheritance diagram for Boardcore::MBLoadCell:

[legend]

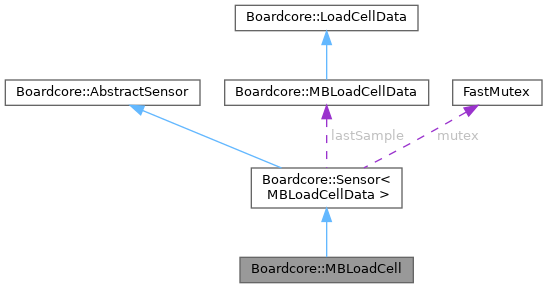

Collaboration diagram for Boardcore::MBLoadCell:

[legend]

Public Member Functions
	MBLoadCell (USARTInterface &serial, LoadCellModes mode)
	constructor that initializes the serial communication with the load cell

bool	init () override
	Initializes the serial communication with the load cell.

ReturnsStates	asciiRequest (LoadCellValuesEnum r, int value=0)
	Generates and sends a request in ASCII mode, waits for the response and updates the lastSample structure.

void	resetMaxMinWeights ()
	Permits to reset the peak weight value.

void	printData ()
	Prints the last sample received.

MBLoadCellData	getMaxWeight ()
	Returns a copy of the max weight detected.

MBLoadCellData	getMinWeight ()
	Returns a copy of the min weight detected.

bool	selfTest () override
	Check if the sensor is working.

Public Member Functions inherited from Boardcore::Sensor< MBLoadCellData >
	Sensor ()

	Sensor (Sensor &&other)

virtual	~Sensor ()

void	sample () override
	Sample the sensor.

virtual MBLoadCellData	getLastSample ()

Public Member Functions inherited from Boardcore::AbstractSensor
virtual	~AbstractSensor ()

SensorErrors	getLastError ()
	Get last error for debugging purposes. Avoid silent fails.

Protected Member Functions
MBLoadCellData	sampleImpl () override
	Requests the weight sampled from the load cell or waits for a sample depending on the mode selected (it's a blocking function).

MBLoadCellData	sampleContModT (void)
	Sampling in the "continuous Mod T" mode.

MBLoadCellData	sampleContModTd (void)
	Sampling in the "continuous Mod Td" mode.

MBLoadCellData	sampleAsciiModTd (void)
	Sampling in the "ASCII Mod Td" mode.

void	generateRequest (DataAsciiRequest &req, const LoadCellValuesEnum toRequest, int value=0)
	Forges a request for the ascii mode.

void	transmitASCII (const std::string &buf)
	Wrapper to the serial sendString method. This also sets the control pins to enable the transmission mode.

std::string	receiveASCII ()
	Wrapper to the serial recvString method. This also sets the control pins to enable the receiver mode.

template<typename T >
void	receive (T *buf)
	Wrapper to the serial receive method. This also sets the control pins to enable the receiver mode.

Additional Inherited Members
Public Types inherited from Boardcore::Sensor< MBLoadCellData >
using	DataType

Protected Attributes inherited from Boardcore::Sensor< MBLoadCellData >
DataType	lastSample

miosix::FastMutex	mutex

Protected Attributes inherited from Boardcore::AbstractSensor
SensorErrors	lastError = SensorErrors::NO_ERRORS

Detailed Description

Driver to communicate with a TLB digital-analog weight transmitter attached to a loadcell.

The driver allows to use the TLB transmitter in different modes:

Continuous-modT: unidirectional protocol that consists in receiving the gross weight
Continuous-modTd: unidirectional protocol that consists in receiving the gross weight
ASCII-modTd: bidirectional mode that consists in sending a request and receiving a response with the data requested or an error message

Definition at line 50 of file MBLoadCell.h.

Constructor & Destructor Documentation

◆ MBLoadCell()

Boardcore::MBLoadCell::MBLoadCell	(	USARTInterface &	serial,
		LoadCellModes	mode )

constructor that initializes the serial communication with the load cell

Parameters

mode	the mode in which the load cell is in
serial	the serial port to be used

Definition at line 36 of file MBLoadCell.cpp.

Member Function Documentation

◆ asciiRequest()

ReturnsStates Boardcore::MBLoadCell::asciiRequest	(	LoadCellValuesEnum	r,
		int	value = 0 )

Generates and sends a request in ASCII mode, waits for the response and updates the lastSample structure.

Definition at line 55 of file MBLoadCell.cpp.

◆ generateRequest()

void Boardcore::MBLoadCell::generateRequest	(	DataAsciiRequest &	req,
		const LoadCellValuesEnum	toRequest,
		int	value = 0 )

protected

Forges a request for the ascii mode.

Parameters

req	Reference to the request that will be generated.
toRequest	The request to forge.
value	The value used in the forging of the "set point" requests.

Definition at line 253 of file MBLoadCell.cpp.

◆ getMaxWeight()

MBLoadCellData Boardcore::MBLoadCell::getMaxWeight ( )

Returns a copy of the max weight detected.

Definition at line 152 of file MBLoadCell.cpp.

◆ getMinWeight()

MBLoadCellData Boardcore::MBLoadCell::getMinWeight ( )

Returns a copy of the min weight detected.

Definition at line 154 of file MBLoadCell.cpp.

◆ init()

bool Boardcore::MBLoadCell::init ( )

overridevirtual

Initializes the serial communication with the load cell.

Returns: True if initialization completed with no problems, false otherwise.

Implements Boardcore::AbstractSensor.

Definition at line 43 of file MBLoadCell.cpp.

◆ printData()

void Boardcore::MBLoadCell::printData ( )

Prints the last sample received.

Definition at line 123 of file MBLoadCell.cpp.

◆ receive()

template<typename T >

void Boardcore::MBLoadCell::receive ( T * buf )

protected

Wrapper to the serial receive method. This also sets the control pins to enable the receiver mode.

Parameters

buf	The pointer to the buffer in which the data received will be stored.

Definition at line 298 of file MBLoadCell.cpp.

◆ receiveASCII()

std::string Boardcore::MBLoadCell::receiveASCII ( )

protected

Wrapper to the serial recvString method. This also sets the control pins to enable the receiver mode.

Returns: The message received.

Definition at line 284 of file MBLoadCell.cpp.

◆ resetMaxMinWeights()

void Boardcore::MBLoadCell::resetMaxMinWeights ( )

Permits to reset the peak weight value.

Definition at line 116 of file MBLoadCell.cpp.

◆ sampleAsciiModTd()

MBLoadCellData Boardcore::MBLoadCell::sampleAsciiModTd ( void )

protected

Sampling in the "ASCII Mod Td" mode.

Definition at line 220 of file MBLoadCell.cpp.

◆ sampleContModT()

MBLoadCellData Boardcore::MBLoadCell::sampleContModT ( void )

protected

Sampling in the "continuous Mod T" mode.

Definition at line 204 of file MBLoadCell.cpp.

◆ sampleContModTd()

MBLoadCellData Boardcore::MBLoadCell::sampleContModTd ( void )

protected

Sampling in the "continuous Mod Td" mode.

Definition at line 212 of file MBLoadCell.cpp.

◆ sampleImpl()

MBLoadCellData Boardcore::MBLoadCell::sampleImpl ( )

overrideprotectedvirtual

Requests the weight sampled from the load cell or waits for a sample depending on the mode selected (it's a blocking function).

Returns: The weight measured from the load cell.

Implements Boardcore::Sensor< MBLoadCellData >.

Definition at line 158 of file MBLoadCell.cpp.

◆ selfTest()

bool Boardcore::MBLoadCell::selfTest ( )

overridevirtual

Check if the sensor is working.

Returns: boolean indicating whether the sensor is correctly working or not

Implements Boardcore::AbstractSensor.

Definition at line 156 of file MBLoadCell.cpp.

◆ transmitASCII()

void Boardcore::MBLoadCell::transmitASCII ( const std::string & buf )

protected

Wrapper to the serial sendString method. This also sets the control pins to enable the transmission mode.

Parameters

buf	The message to send.

Definition at line 275 of file MBLoadCell.cpp.

The documentation for this class was generated from the following files:

src/shared/sensors/MBLoadCell/MBLoadCell.h
src/shared/sensors/MBLoadCell/MBLoadCell.cpp
