Boardcore::BMX160 Class Reference

BMX160 Driver. More...

#include <BMX160.h>

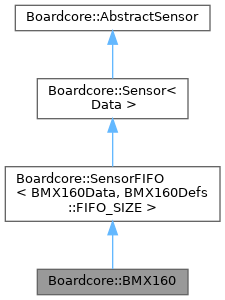

Inheritance diagram for Boardcore::BMX160:

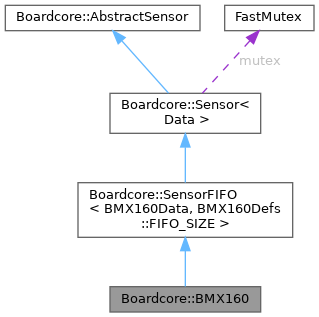

Collaboration diagram for Boardcore::BMX160:

Public Types
enum	BMX160Errors : uint8_t { INVALID_FIFO_DATA }
	BMX160 Custom errors. More...
Public Types inherited from Boardcore::Sensor< Data >
using	DataType = Data

Public Member Functions
	BMX160 (SPIBusInterface &bus, miosix::GpioPin cs, BMX160Config config={})
	BMX160 Constructor.
	BMX160 (SPIBusInterface &bus, miosix::GpioPin cs, BMX160Config config, SPIBusConfig busConfig)
	BMX160 Constructor.
bool	init () override
	Initialize the driver.
bool	selfTest () override
	Perform selftest on the device.
BMX160Data	sampleImpl () override
	Gather data from FIFO/data registers and temperature sensor.
BMX160Temperature	getTemperature ()
	Get last read temperature.
BMX160FifoStats	getFifoStats ()
	Retrieve last fifo stats.
void	IRQupdateTimestamp (uint64_t ts) override
	Sometimes the sensor pulls down the interrupt pin while reading data. We override this method and update the timestamps only if we are not still reading the fifo (.
Public Member Functions inherited from Boardcore::SensorFIFO< BMX160Data, BMX160Defs::FIFO_SIZE >
	SensorFIFO ()
	SensorFIFO (SensorFIFO &&other)
const std::array< BMX160Data, FifoSize >	getLastFifo (uint16_t &lastFifoSize)
Public Member Functions inherited from Boardcore::Sensor< Data >
	Sensor ()
	Sensor (Sensor &&other)
virtual	~Sensor ()
void	sample () override
	Sample the sensor.
virtual Data	getLastSample ()
Public Member Functions inherited from Boardcore::AbstractSensor
virtual	~AbstractSensor ()
SensorErrors	getLastError ()
	Get last error for debugging purposes. Avoid silent fails.

Additional Inherited Members
Protected Attributes inherited from Boardcore::SensorFIFO< BMX160Data, BMX160Defs::FIFO_SIZE >
std::array< BMX160Data, FifoSize >	lastFifo
uint16_t	lastFifoLevel
uint64_t	lastInterruptTimestamp
uint64_t	interruptTimestampDelta
Protected Attributes inherited from Boardcore::Sensor< Data >
DataType	lastSample
miosix::FastMutex	mutex
Protected Attributes inherited from Boardcore::AbstractSensor
SensorErrors	lastError = SensorErrors::NO_ERRORS

Detailed Description

BMX160 Driver.

Definition at line 44 of file BMX160.h.

Member Enumeration Documentation

BMX160Errors

enum Boardcore::BMX160::BMX160Errors : uint8_t

BMX160 Custom errors.

Enumerator
INVALID_FIFO_DATA	The fifo contained invalid data.

Definition at line 50 of file BMX160.h.

Constructor & Destructor Documentation

BMX160() [1/2]

Boardcore::BMX160::BMX160	(	SPIBusInterface &	bus,
		miosix::GpioPin	cs,
		BMX160Config	config = {} )

BMX160 Constructor.

Parameters

bus	SPI bus
cs	SPI Chip Select pin
config	BMX160 configuration

Definition at line 31 of file BMX160.cpp.

BMX160() [2/2]

Boardcore::BMX160::BMX160	(	SPIBusInterface &	bus,
		miosix::GpioPin	cs,
		BMX160Config	config,
		SPIBusConfig	busConfig )

BMX160 Constructor.

Parameters

bus	SPI bus
cs	SPI Chip Select pin
config	BMX160 configuration
busConfig	SPI bus configuration

Definition at line 40 of file BMX160.cpp.

Member Function Documentation

getFifoStats()

BMX160FifoStats Boardcore::BMX160::getFifoStats

(

)

Retrieve last fifo stats.

Definition at line 169 of file BMX160.cpp.

getTemperature()

BMX160Temperature Boardcore::BMX160::getTemperature

(

)

Get last read temperature.

Definition at line 161 of file BMX160.cpp.

init()

bool Boardcore::BMX160::init ( )

overridevirtual

Initialize the driver.

Implements Boardcore::AbstractSensor.

Definition at line 49 of file BMX160.cpp.

IRQupdateTimestamp()

void Boardcore::BMX160::IRQupdateTimestamp ( uint64_t ts )

overridevirtual

Sometimes the sensor pulls down the interrupt pin while reading data. We override this method and update the timestamps only if we are not still reading the fifo (.

See also

{irqEnabled} ).

Reimplemented from Boardcore::SensorFIFO< BMX160Data, BMX160Defs::FIFO_SIZE >.

Definition at line 105 of file BMX160.cpp.

sampleImpl()

BMX160Data Boardcore::BMX160::sampleImpl ( )

overridevirtual

Gather data from FIFO/data registers and temperature sensor.

Implements Boardcore::Sensor< Data >.

Definition at line 112 of file BMX160.cpp.

selfTest()

bool Boardcore::BMX160::selfTest ( )

overridevirtual

Perform selftest on the device.

Implements Boardcore::AbstractSensor.

Definition at line 84 of file BMX160.cpp.

---

The documentation for this class was generated from the following files:

• src/shared/sensors/BMX160/BMX160.h
• src/shared/sensors/BMX160/BMX160.cpp
