#include <ADS1118.h>

Inheritance diagram for Boardcore::ADS1118:

[legend]

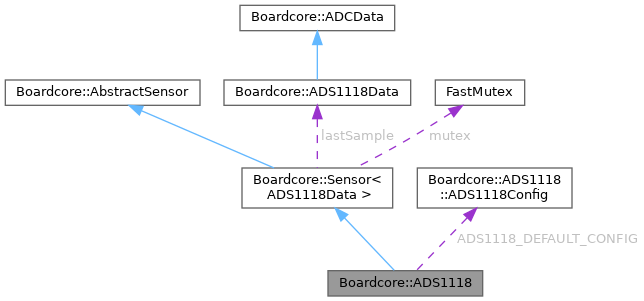

Collaboration diagram for Boardcore::ADS1118:

[legend]

Classes
union	ADS1118Config
	Structure of configuration word. More...

struct	ADS1118InputConfig
	Driver's input config. More...

Public Types
enum	ADS1118Mux { MUX_AIN0_AIN1 = 0x0 , MUX_AIN0_AIN3 = 0x1 , MUX_AIN1_AIN3 = 0x2 , MUX_AIN2_AIN3 = 0x3 , MUX_AIN0_GND = 0x4 , MUX_AIN1_GND = 0x5 , MUX_AIN2_GND = 0x6 , MUX_AIN3_GND = 0x7 }

enum	ADS1118Pga { FSR_6_144 = 0x0 , FSR_4_096 = 0x1 , FSR_2_048 = 0x2 , FSR_1_024 = 0x3 , FSR_0_512 = 0x4 , FSR_0_256 = 0x5 }

enum	ADS1118Mode { CONTINUOUS_CONV_MODE = 0x0 , SINGLE_SHOT_MODE = 0x1 }

enum	ADS1118DataRate { DR_8 = 0x0 , DR_16 = 0x1 , DR_32 = 0x2 , DR_64 = 0x3 , DR_128 = 0x4 , DR_250 = 0x5 , DR_475 = 0x6 , DR_860 = 0x7 }

enum	ADS1118TempMode { ADC_MODE = 0x0 , TEMP_SENSOR_MODE = 0x1 }

enum	ADS1118PullUp { PULL_UP_DIS = 0x0 , PULL_UP_EN = 0x1 }

Public Types inherited from Boardcore::Sensor< ADS1118Data >
using	DataType

Public Member Functions
	ADS1118 (SPIBusInterface &bus, miosix::GpioPin cs, ADS1118Config config_, SPIBusConfig spiConfig=getDefaultSPIConfig())
	Construct a new ADS1118 object specifying spi bus, spi config and cs pin as well as device configuration.

	ADS1118 (SPISlave spiSlave_, ADS1118Config config_=ADS1118_DEFAULT_CONFIG, bool busyWait_=false, int16_t tempDivider_=100)
	Construct a new ADS1118 object.

bool	init () override
	Initialize the configuration.

void	enableInput (ADS1118Mux mux)
	Enables the sapling of a specific mux configuration with the main configuration specified in the constructor.

void	enableInput (ADS1118Mux mux, ADS1118DataRate rate, ADS1118Pga pga)
	Enables the sampling of a specific mux configuration.

void	disableInput (ADS1118Mux mux)

void	disableAllInputs ()

void	enableTemperature ()

void	disableTemperature ()

void	enablePullUpResistor ()

void	disablePullUpResistor ()

void	enableConfigCheck ()
	Enables the configuration check after it's writing to the device.

void	disableConfigCheck ()
	Disables the configuration check after it's writing to the device.

ADS1118Data	readInputAndWait (ADS1118Mux mux)
	Reads on the fly the specified input.

TemperatureData	readTemperatureAndWait ()
	Reads on the fly the temperature.

ADS1118Data	getVoltage (ADS1118Mux mux)
	Returns the last read voltage value for the specified channel.

TemperatureData	getTemperature ()
	Returns the last temperature value.

int	getConversionTime (int8_t channel)
	Returns the conversion time in us for the specified channel.

bool	selfTest () override
	Writes the temperature configuration and check if it is read back correctly.

Public Member Functions inherited from Boardcore::Sensor< ADS1118Data >
	Sensor ()

	Sensor (Sensor &&other)

virtual	~Sensor ()

void	sample () override
	Sample the sensor.

virtual ADS1118Data	getLastSample ()

Public Member Functions inherited from Boardcore::AbstractSensor
virtual	~AbstractSensor ()

SensorErrors	getLastError ()
	Get last error for debugging purposes. Avoid silent fails.

Static Public Member Functions
static SPIBusConfig	getDefaultSPIConfig ()

Static Public Attributes
static constexpr uint8_t	VALID_OPERATION
	Indicates a valid configuration.

static const ADS1118Config	ADS1118_DEFAULT_CONFIG
	Default configuration.

static constexpr int8_t	TEMP_CHANNEL = 8
	Temperature channel number.

static constexpr int8_t	NUM_OF_CHANNELS = 9

static constexpr int8_t	INVALID_CHANNEL = -1

Protected Member Functions
ADS1118Data	sampleImpl () override
	Reads the previously configured channel while writing the next enabled configuration.

Additional Inherited Members
Protected Attributes inherited from Boardcore::Sensor< ADS1118Data >
DataType	lastSample

miosix::FastMutex	mutex

Protected Attributes inherited from Boardcore::AbstractSensor
SensorErrors	lastError = SensorErrors::NO_ERRORS

Detailed Description

Driver for ADS1118 adc.

The ADS1118 is a 16-bit delta-sigma analog-to-digital converter. It measures the difference of two inputs configured by a MUX. The device allows also to read each of the four pins in reference to GND. A temperature sensor is also included.

The communication uses the SPI protocol and the maximum allowed frequency is 4MHz. Configuration is applied by writing a 16bit value to the device. Sampled voltages or temperature readings are obtained also by reading a 16bit value while writing the configuration.

Data rate between 8Hz and 860Hz can be programmed and an internal programmable gain amplifier can be set with a sensitivity range from ±0.256V to ±6.144V (note that the inputs must remain between VCC or GND).

The data rate should be choosen as low as possible to allow the delta-sigma adc to average the input voltage (this allows a less noisy reading).

The device can work in two modes:

CONTINUOUS_CONV_MODE: Continuously read the last configured channel, when you make a read you'll obtain the lates reading
SINGLE_SHOT_MODE: A single conversion is performed when the configuration is written

The ADS1118 is a simple device, it has a single data register where it can store the reading, therefore it can sample a single input at a time. sample() cycles through the enabled channels one at a time and writes it's configuration while reading the value of the previous written one.

As an example if you need to read 4 inputs at 50Hz you should set all the data rates at 250Hz (50Hz x * 4 = 200Hz) and call sample() at a rate of 200Hz.

An example for how to use the driver can be found in the test code (src/tests/drivers/test-ads1118.cpp)

Definition at line 71 of file ADS1118.h.

Member Enumeration Documentation

◆ ADS1118DataRate

enum Boardcore::ADS1118::ADS1118DataRate

Enumerator
DR_8	8 SPS
DR_16	16 SPS
DR_32	32 SPS
DR_64	64 SPS
DR_128	128 SPS (default)
DR_250	250 SPS
DR_475	475 SPS
DR_860	860 SPS

Definition at line 102 of file ADS1118.h.

◆ ADS1118Mode

enum Boardcore::ADS1118::ADS1118Mode

Enumerator
CONTINUOUS_CONV_MODE	Continuous-conversion mode.
SINGLE_SHOT_MODE	Power-down and single-shot mode (default)

Definition at line 96 of file ADS1118.h.

◆ ADS1118Mux

enum Boardcore::ADS1118::ADS1118Mux

Enumerator
MUX_AIN0_AIN1	AINp is AIN0 and AINn is AIN1 (default)
MUX_AIN0_AIN3	AINp is AIN0 and AINn is AIN3.
MUX_AIN1_AIN3	AINp is AIN1 and AINn is AIN3.
MUX_AIN2_AIN3	AINp is AIN2 and AINn is AIN3.
MUX_AIN0_GND	AINp is AIN0 and AINn is GND.
MUX_AIN1_GND	AINp is AIN1 and AINn is GND.
MUX_AIN2_GND	AINp is AIN2 and AINn is GND.
MUX_AIN3_GND	AINp is AIN3 and AINn is GND.

Definition at line 74 of file ADS1118.h.

◆ ADS1118Pga

enum Boardcore::ADS1118::ADS1118Pga

Enumerator
FSR_6_144	FSR is ±6.144 V.
FSR_4_096	FSR is ±4.096 V.
FSR_2_048	FSR is ±2.048 V (default)
FSR_1_024	FSR is ±1.024 V.
FSR_0_512	FSR is ±0.512 V.
FSR_0_256	FSR is ±0.256 V.

Definition at line 86 of file ADS1118.h.

◆ ADS1118PullUp

enum Boardcore::ADS1118::ADS1118PullUp

Enumerator
PULL_UP_DIS	Pullup resistor disabled on DOUT pin.
PULL_UP_EN	Pullup resistor enabled on DOUT pin (default)

Definition at line 120 of file ADS1118.h.

◆ ADS1118TempMode

enum Boardcore::ADS1118::ADS1118TempMode

Enumerator
ADC_MODE	ADC mode (default)
TEMP_SENSOR_MODE	Temperature sensor mode.

Definition at line 114 of file ADS1118.h.

Constructor & Destructor Documentation

◆ ADS1118() [1/2]

Boardcore::ADS1118::ADS1118	(	SPIBusInterface &	bus,
		miosix::GpioPin	cs,
		ADS1118Config	config_,
		SPIBusConfig	spiConfig = getDefaultSPIConfig() )

Construct a new ADS1118 object specifying spi bus, spi config and cs pin as well as device configuration.

Definition at line 35 of file ADS1118.cpp.

◆ ADS1118() [2/2]

Boardcore::ADS1118::ADS1118	(	SPISlave	spiSlave_,
		ADS1118Config	config_ = ADS1118_DEFAULT_CONFIG,
		bool	busyWait_ = false,
		int16_t	tempDivider_ = 100 )

explicit

Construct a new ADS1118 object.

Parameters

spiSlave_	Spi slave configured with spi interface, spi config and ss pin.
config_	Device main configuration used as default while enabling channels.
busyWait_	Enable busy wait instead normal wait (uses `delayUs` instead of `sleep`), only useful when sampling at close to the maximum frequency!.
tempDivider_	Specify how many onSimpleUpdate calls between each temperature reading.

Definition at line 41 of file ADS1118.cpp.

Member Function Documentation

◆ disableAllInputs()

void Boardcore::ADS1118::disableAllInputs ( )

Definition at line 93 of file ADS1118.cpp.

◆ disableConfigCheck()

void Boardcore::ADS1118::disableConfigCheck ( )

Disables the configuration check after it's writing to the device.

Definition at line 112 of file ADS1118.cpp.

◆ disableInput()

void Boardcore::ADS1118::disableInput ( ADS1118Mux mux )

Definition at line 91 of file ADS1118.cpp.

◆ disablePullUpResistor()

void Boardcore::ADS1118::disablePullUpResistor ( )

Definition at line 108 of file ADS1118.cpp.

◆ disableTemperature()

void Boardcore::ADS1118::disableTemperature ( )

Definition at line 104 of file ADS1118.cpp.

◆ enableConfigCheck()

void Boardcore::ADS1118::enableConfigCheck ( )

Enables the configuration check after it's writing to the device.

Definition at line 110 of file ADS1118.cpp.

◆ enableInput() [1/2]

void Boardcore::ADS1118::enableInput ( ADS1118Mux mux )

Enables the sapling of a specific mux configuration with the main configuration specified in the constructor.

Parameters

mux	Mux configuration to enable.

Definition at line 71 of file ADS1118.cpp.

◆ enableInput() [2/2]

void Boardcore::ADS1118::enableInput	(	ADS1118Mux	mux,
		ADS1118DataRate	rate,
		ADS1118Pga	pga )

Enables the sampling of a specific mux configuration.

Parameters

mux	Mux configuration to enable.
rate	Data rate for this specific channel.
pga	Gain for this specific channel.

Definition at line 76 of file ADS1118.cpp.

◆ enablePullUpResistor()

void Boardcore::ADS1118::enablePullUpResistor ( )

Definition at line 106 of file ADS1118.cpp.

◆ enableTemperature()

void Boardcore::ADS1118::enableTemperature ( )

Definition at line 99 of file ADS1118.cpp.

◆ getConversionTime()

int Boardcore::ADS1118::getConversionTime ( int8_t channel )

Returns the conversion time in us for the specified channel.

Definition at line 134 of file ADS1118.cpp.

◆ getDefaultSPIConfig()

SPIBusConfig Boardcore::ADS1118::getDefaultSPIConfig ( )

static

Constructs the default config for SPI Bus.

Returns: the default SPIBusConfig.

Definition at line 61 of file ADS1118.cpp.

◆ getTemperature()

TemperatureData Boardcore::ADS1118::getTemperature ( )

Returns the last temperature value.

Definition at line 128 of file ADS1118.cpp.

◆ getVoltage()

ADS1118Data Boardcore::ADS1118::getVoltage ( ADS1118Mux mux )

Returns the last read voltage value for the specified channel.

Definition at line 126 of file ADS1118.cpp.

◆ init()

bool Boardcore::ADS1118::init ( )

overridevirtual

Initialize the configuration.

It resets all the channels thus you must call init() before enabling any channel.

Implements Boardcore::AbstractSensor.

Definition at line 69 of file ADS1118.cpp.

◆ readInputAndWait()

ADS1118Data Boardcore::ADS1118::readInputAndWait ( ADS1118Mux mux )

Reads on the fly the specified input.

Parameters

mux	Mux configuration to read.

Returns: Voltage value sampled from the channel in mV.

Definition at line 114 of file ADS1118.cpp.

◆ readTemperatureAndWait()

TemperatureData Boardcore::ADS1118::readTemperatureAndWait ( )

Reads on the fly the temperature.

Returns: Temperature in degree.

Definition at line 120 of file ADS1118.cpp.

◆ sampleImpl()

ADS1118Data Boardcore::ADS1118::sampleImpl ( )

overrideprotectedvirtual

Reads the previously configured channel while writing the next enabled configuration.

Multiple calls are needed to read all the enabled channels.

The sampling of all the enabled inputs is performed in sequence starting from the input with the lowest mux value.

The first configuration is written and then, at the next call, read back the result while transmitting the next configuration

Implements Boardcore::Sensor< ADS1118Data >.

Definition at line 173 of file ADS1118.cpp.

◆ selfTest()

bool Boardcore::ADS1118::selfTest ( )

overridevirtual

Writes the temperature configuration and check if it is read back correctly.

Returns: True if everything ok.

Implements Boardcore::AbstractSensor.

Definition at line 142 of file ADS1118.cpp.

Member Data Documentation

◆ ADS1118_DEFAULT_CONFIG

const ADS1118::ADS1118Config Boardcore::ADS1118::ADS1118_DEFAULT_CONFIG

static

Initial value:

= {
    SINGLE_SHOT_MODE, FSR_2_048,  MUX_AIN0_AIN1, 0,     0,
    VALID_OPERATION,  PULL_UP_EN, ADC_MODE,      DR_128}

Default configuration.

Definition at line 160 of file ADS1118.h.

◆ INVALID_CHANNEL

constexpr int8_t Boardcore::ADS1118::INVALID_CHANNEL = -1

staticconstexpr

Definition at line 166 of file ADS1118.h.

◆ NUM_OF_CHANNELS

constexpr int8_t Boardcore::ADS1118::NUM_OF_CHANNELS = 9

staticconstexpr

Definition at line 164 of file ADS1118.h.

◆ TEMP_CHANNEL

constexpr int8_t Boardcore::ADS1118::TEMP_CHANNEL = 8

staticconstexpr

Temperature channel number.

Definition at line 162 of file ADS1118.h.

◆ VALID_OPERATION

constexpr uint8_t Boardcore::ADS1118::VALID_OPERATION

staticconstexpr

Initial value:

=

0x1

Indicates a valid configuration.

Definition at line 156 of file ADS1118.h.

The documentation for this class was generated from the following files:

src/shared/sensors/ADS1118/ADS1118.h
src/shared/sensors/ADS1118/ADS1118.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ ADS1118DataRate

◆ ADS1118Mode

◆ ADS1118Mux

◆ ADS1118Pga

◆ ADS1118PullUp

◆ ADS1118TempMode

Constructor & Destructor Documentation

◆ ADS1118() [1/2]

◆ ADS1118() [2/2]

Member Function Documentation

◆ disableAllInputs()

◆ disableConfigCheck()

◆ disableInput()

◆ disablePullUpResistor()

◆ disableTemperature()

◆ enableConfigCheck()

◆ enableInput() [1/2]

◆ enableInput() [2/2]

◆ enablePullUpResistor()

◆ enableTemperature()

◆ getConversionTime()

◆ getDefaultSPIConfig()

◆ getTemperature()

◆ getVoltage()

◆ init()

◆ readInputAndWait()

◆ readTemperatureAndWait()

◆ sampleImpl()

◆ selfTest()

Member Data Documentation

◆ ADS1118_DEFAULT_CONFIG

◆ INVALID_CHANNEL

◆ NUM_OF_CHANNELS

◆ TEMP_CHANNEL

◆ VALID_OPERATION
