Boardcore::MS5803I2C Class Reference

#include <MS5803I2C.h>

Inheritance diagram for Boardcore::MS5803I2C:
Inheritance graph
[legend]

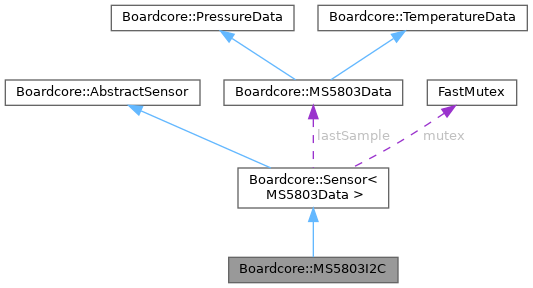

Collaboration diagram for Boardcore::MS5803I2C:
Collaboration graph
[legend]

Public Types

enum  FSMStates { STATE_INIT = 0 , STATE_SAMPLED_TEMP , STATE_SAMPLED_PRESS }

enum  MS5803Registers : uint8_t {
  REG_RESET = 0x1E , REG_CONVERT_D1_256 = 0x40 , REG_CONVERT_D1_512 = 0x42 , REG_CONVERT_D1_1024 = 0x44 ,
  REG_CONVERT_D1_2048 = 0x46 , REG_CONVERT_D1_4096 = 0x48 , REG_CONVERT_D2_256 = 0x50 , REG_CONVERT_D2_512 = 0x52 ,
  REG_CONVERT_D2_1024 = 0x54 , REG_CONVERT_D2_2048 = 0x56 , REG_CONVERT_D2_4096 = 0x58 , REG_ADC_READ = 0x00 ,
  REG_PROM_SENS_MASK = 0xA2 , REG_PROM_OFF_MASK = 0xA4 , REG_PROM_TCS_MASK = 0xA6 , REG_PROM_TCO_MASK = 0xA8 ,
  REG_PROM_TREF_MASK = 0xAA , REG_PROM_TEMPSENS_MASK = 0xAC
}

- Public Types inherited from Boardcore::Sensor< MS5803Data >
using DataType = MS5803Data


Public Member Functions

 MS5803I2C (I2C &bus, uint16_t temperatureDivider=1)

bool init () override
 Initialize the sensor.

bool selfTest () override
 Check if the sensor is working.

- Public Member Functions inherited from Boardcore::Sensor< MS5803Data >
 Sensor ()

 Sensor (Sensor &&other)

virtual ~Sensor ()

void sample () override
 Sample the sensor.

virtual MS5803Data getLastSample ()

- Public Member Functions inherited from Boardcore::AbstractSensor
virtual ~AbstractSensor ()

SensorErrors getLastError ()
 Get last error for debugging purposes. Avoid silent fails.


Static Public Attributes

static constexpr uint8_t TIMEOUT = 5


Protected Member Functions

MS5803Data sampleImpl () override


Additional Inherited Members

- Protected Attributes inherited from Boardcore::Sensor< MS5803Data >
DataType lastSample

miosix::FastMutex mutex

- Protected Attributes inherited from Boardcore::AbstractSensor
SensorErrors lastError = SensorErrors::NO_ERRORS


Detailed Description

Definition at line 34 of file MS5803I2C.h.

Member Enumeration Documentation

◆ FSMStates

enum Boardcore::MS5803I2C::FSMStates
Enumerator
STATE_INIT
STATE_SAMPLED_TEMP
STATE_SAMPLED_PRESS

Definition at line 37 of file MS5803I2C.h.

◆ MS5803Registers

enum Boardcore::MS5803I2C::MS5803Registers : uint8_t
Enumerator
REG_RESET
REG_CONVERT_D1_256
REG_CONVERT_D1_512
REG_CONVERT_D1_1024
REG_CONVERT_D1_2048
REG_CONVERT_D1_4096
REG_CONVERT_D2_256
REG_CONVERT_D2_512
REG_CONVERT_D2_1024
REG_CONVERT_D2_2048
REG_CONVERT_D2_4096
REG_ADC_READ
REG_PROM_SENS_MASK
REG_PROM_OFF_MASK
REG_PROM_TCS_MASK
REG_PROM_TCO_MASK
REG_PROM_TREF_MASK
REG_PROM_TEMPSENS_MASK

Definition at line 44 of file MS5803I2C.h.

Constructor & Destructor Documentation

◆ MS5803I2C()

Boardcore::MS5803I2C::MS5803I2C ( I2C &  bus,
uint16_t  temperatureDivider = 1
)
explicit

Definition at line 31 of file MS5803I2C.cpp.

Member Function Documentation

◆ init()

bool Boardcore::MS5803I2C::init ( )
overridevirtual

Initialize the sensor.

Returns
boolean value indicating whether the operation succeded or not

Implements Boardcore::AbstractSensor.

Definition at line 36 of file MS5803I2C.cpp.

◆ sampleImpl()

MS5803Data Boardcore::MS5803I2C::sampleImpl ( )
overrideprotectedvirtual

Implements a state machines composed of 3 states:

  1. Command pressure sample
  2. Read Pressure sample & command temperature sample
  3. Read temperature sample & command pressure sample

After the first call to sample() (state 1), the machine transitions between states 2 and 3: The effective sampling rate is half the rate at which this function is called. Example: call sample() at 100 Hz -> Pressure & Temperature sample Rate = 50 Hz

Implements Boardcore::Sensor< MS5803Data >.

Definition at line 57 of file MS5803I2C.cpp.

◆ selfTest()

bool Boardcore::MS5803I2C::selfTest ( )
overridevirtual

Check if the sensor is working.

Returns
boolean indicating whether the sensor is correctly working or not

Implements Boardcore::AbstractSensor.

Definition at line 55 of file MS5803I2C.cpp.

Member Data Documentation

◆ TIMEOUT

constexpr uint8_t Boardcore::MS5803I2C::TIMEOUT = 5
staticconstexpr

Definition at line 73 of file MS5803I2C.h.

The documentation for this class was generated from the following files:
