Boardcore::MPU9250 Class Reference

Driver class for MPU9250. More...

#include <MPU9250.h>

Inheritance diagram for Boardcore::MPU9250:
Inheritance graph
[legend]

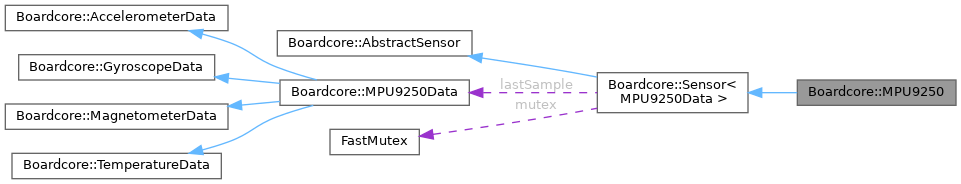

Collaboration diagram for Boardcore::MPU9250:
Collaboration graph
[legend]

Classes

union  MPU9250RawData


Public Types

enum  GyroFSR : uint8_t { GYRO_FSR_250DPS = 0x0 , GYRO_FSR_500DPS = 0x08 , GYRO_FSR_1000DPS = 0x10 , GYRO_FSR_2000DPS = 0x18 }

enum  AccelFSR : uint8_t { ACCEL_FSR_2G = 0x0 , ACCEL_FSR_4G = 0x08 , ACCEL_FSR_8G = 0x10 , ACCEL_FSR_16G = 0x18 }

enum  I2CMasterInterfaceClock : uint8_t {
  I2C_MST_IF_CLK_348 = 0x0 , I2C_MST_IF_CLK_333 = 0x1 , I2C_MST_IF_CLK_320 = 0x2 , I2C_MST_IF_CLK_308 = 0x3 ,
  I2C_MST_IF_CLK_296 = 0x4 , I2C_MST_IF_CLK_286 = 0x5 , I2C_MST_IF_CLK_276 = 0x6 , I2C_MST_IF_CLK_267 = 0x7 ,
  I2C_MST_IF_CLK_258 = 0x8 , I2C_MST_IF_CLK_500 = 0x9 , I2C_MST_IF_CLK_471 = 0xA , I2C_MST_IF_CLK_444 = 0xB ,
  I2C_MST_IF_CLK_421 = 0xC , I2C_MST_IF_CLK_400 = 0xD , I2C_MST_IF_CLK_381 = 0xE , I2C_MST_IF_CLK_364 = 0xF
}

enum  MPU9250Registers : uint8_t {
  REG_SMPLRT_DIV = 0x19 , REG_CONFIG = 0x1A , REG_GYRO_CONFIG = 0x1B , REG_ACCEL_CONFIG = 0x1C ,
  REG_FIFO_EN = 0x23 , REG_I2C_MST_CTRL = 0x24 , REG_I2C_SLV0_ADDR = 0x25 , REG_I2C_SLV0_REG = 0x26 ,
  REG_I2C_SLV0_CTRL = 0x27 , REG_I2C_SLV1_ADDR = 0x28 , REG_I2C_SLV1_REG = 0x29 , REG_I2C_SLV1_CTRL = 0x2A ,
  REG_I2C_SLV2_ADDR = 0x2B , REG_I2C_SLV2_REG = 0x2C , REG_I2C_SLV2_CTRL = 0x2D , REG_I2C_SLV3_ADDR = 0x2E ,
  REG_I2C_SLV3_REG = 0x2F , REG_I2C_SLV3_CTRL = 0x30 , REG_I2C_SLV4_ADDR = 0x31 , REG_I2C_SLV4_REG = 0x32 ,
  REG_I2C_SLV4_DO = 0x33 , REG_I2C_SLV4_CTRL = 0x34 , REG_INT_PIN_CFG = 0x37 , REG_INT_ENABLE = 0x38 ,
  REG_INT_STATUS = 0x3A , REG_ACCEL_XOUT_H = 0x3B , REG_ACCEL_XOUT_L = 0x3C , REG_ACCEL_YOUT_H = 0x3D ,
  REG_ACCEL_YOUT_L = 0x3E , REG_ACCEL_ZOUT_H = 0x3F , REG_ACCEL_ZOUT_L = 0x40 , REG_TEMP_OUT_H = 0x41 ,
  REG_TEMP_OUT_L = 0x42 , REG_GYRO_XOUT_H = 0x43 , REG_GYRO_XOUT_L = 0x44 , REG_GYRO_YOUT_H = 0x45 ,
  REG_GYRO_YOUT_L = 0x46 , REG_GYRO_ZOUT_H = 0x47 , REG_GYRO_ZOUT_L = 0x48 , REG_EXT_SENS_DATA_00 = 0x49 ,
  REG_I2C_SLV0_DO = 0x63 , REG_I2C_SLV1_DO = 0x64 , REG_I2C_SLV2_DO = 0x65 , REG_I2C_SLV3_DO = 0x66 ,
  REG_MST_DELAY_CTRL = 0x67 , REG_USER_CTRL = 0x6A , REG_PWR_MGMT_1 = 0x6B , REG_PWR_MGMT_2 = 0x6C ,
  REG_WHO_AM_I = 0x75
}

enum  AK8963Registers : uint8_t {
  AK8963_REG_WHO_AM_I = 0x0 , AK8963_REG_ST1 = 0x2 , AK8963_REG_HXL = 0x3 , AK8963_REG_HXH = 0x4 ,
  AK8963_REG_HYL = 0x5 , AK8963_REG_HYH = 0x6 , AK8963_REG_HZL = 0x7 , AK8963_REG_HZH = 0x8 ,
  AK8963_REG_ST2 = 0x9 , AK8963_REG_CNTL1 = 0xA , AK8963_REG_CNTL2 = 0xB , AK8963_REG_ASAX = 0x10 ,
  AK8963_REG_ASAY = 0x11 , AK8963_REG_ASAZ = 0x12
}

- Public Types inherited from Boardcore::Sensor< MPU9250Data >
using DataType


Public Member Functions

 MPU9250 (SPIBusInterface &bus, miosix::GpioPin cs, SPIBusConfig config=getDefaultSPIConfig(), unsigned short samplingRate=100, GyroFSR gyroFsr=GYRO_FSR_250DPS, AccelFSR accelFsr=ACCEL_FSR_2G)
 Instantiates the driver.

bool init () override
 Initialize the device.

bool selfTest () override
 Self test.

- Public Member Functions inherited from Boardcore::Sensor< MPU9250Data >
 Sensor ()

 Sensor (Sensor &&other)

virtual ~Sensor ()

void sample () override
 Sample the sensor.

virtual MPU9250Data getLastSample ()

- Public Member Functions inherited from Boardcore::AbstractSensor
virtual ~AbstractSensor ()

SensorErrors getLastError ()
 Get last error for debugging purposes. Avoid silent fails.


Static Public Member Functions

static SPIBusConfig getDefaultSPIConfig ()
 Constructs the default config for SPI Bus.


Public Attributes

const float ACCELERATION_FS_MAP [4] = {2.0, 4.0, 8.0, 16.0}

const float GYROSCOPE_FS_MAP [4] = {250, 500, 1000, 2000}


Static Public Attributes

static constexpr uint8_t REG_CONFIG_DLPF_CFG_1 = 0x1

static constexpr uint8_t REG_USER_CTRL_I2C_MST_EN = 0x20

static constexpr uint8_t REG_I2C_SLV_CTRL_EN = 0x80

static constexpr uint8_t REG_PWR_MGMT_1_BIT_H_RESET = 0x80

static constexpr uint8_t REG_PWR_MGMT_1_CLKSEL_AUTO = 0x1

static constexpr uint8_t REG_WHO_AM_I_VAL = 0x71

static constexpr uint8_t AK8963_ADDR = 0xC

static constexpr uint8_t AK8963_REG_WHO_AM_I_VAL = 0x48

static constexpr uint8_t AK8963_REG_CNTL1_POWER_DOWN_MODE = 0x0

static constexpr uint8_t AK8963_REG_CNTL1_SINGLE_MES_MODE = 0x11

static constexpr uint8_t AK8963_REG_CNTL1_CONT_MES_MODE_1 = 0x12

static constexpr uint8_t AK8963_REG_CNTL1_CONT_MES_MODE_2 = 0x16

static constexpr uint8_t AK8963_REG_CNTL1_SELF_TEST_MODE = 0x8

static constexpr uint8_t AK8963_REG_CNTL1_FUSE_ROM_ACCESS_MODE = 0xF

static constexpr uint8_t AK8963_REG_CNTL1_BIT_16_BIT_OUT = 0xF

static constexpr uint8_t AK8963_REG_CNTL2_BIT_SRST = 0x1


Protected Member Functions

MPU9250Data sampleImpl () override
 Read a data sample from the sensor. In case of errors, the method should return the last available correct sample.


Additional Inherited Members

- Protected Attributes inherited from Boardcore::Sensor< MPU9250Data >
DataType lastSample

miosix::FastMutex mutex

- Protected Attributes inherited from Boardcore::AbstractSensor
SensorErrors lastError = SensorErrors::NO_ERRORS


Detailed Description

Driver class for MPU9250.

Definition at line 37 of file MPU9250.h.

Member Enumeration Documentation

◆ AccelFSR

enum Boardcore::MPU9250::AccelFSR : uint8_t
Enumerator
ACCEL_FSR_2G
ACCEL_FSR_4G
ACCEL_FSR_8G
ACCEL_FSR_16G

Definition at line 48 of file MPU9250.h.

◆ AK8963Registers

enum Boardcore::MPU9250::AK8963Registers : uint8_t
Enumerator
AK8963_REG_WHO_AM_I
AK8963_REG_ST1
AK8963_REG_HXL
AK8963_REG_HXH
AK8963_REG_HYL
AK8963_REG_HYH
AK8963_REG_HZL
AK8963_REG_HZH
AK8963_REG_ST2
AK8963_REG_CNTL1
AK8963_REG_CNTL2
AK8963_REG_ASAX
AK8963_REG_ASAY
AK8963_REG_ASAZ

Definition at line 148 of file MPU9250.h.

◆ GyroFSR

enum Boardcore::MPU9250::GyroFSR : uint8_t
Enumerator
GYRO_FSR_250DPS
GYRO_FSR_500DPS
GYRO_FSR_1000DPS
GYRO_FSR_2000DPS

Definition at line 40 of file MPU9250.h.

◆ I2CMasterInterfaceClock

enum Boardcore::MPU9250::I2CMasterInterfaceClock : uint8_t
Enumerator
I2C_MST_IF_CLK_348
I2C_MST_IF_CLK_333
I2C_MST_IF_CLK_320
I2C_MST_IF_CLK_308
I2C_MST_IF_CLK_296
I2C_MST_IF_CLK_286
I2C_MST_IF_CLK_276
I2C_MST_IF_CLK_267
I2C_MST_IF_CLK_258
I2C_MST_IF_CLK_500
I2C_MST_IF_CLK_471
I2C_MST_IF_CLK_444
I2C_MST_IF_CLK_421
I2C_MST_IF_CLK_400
I2C_MST_IF_CLK_381
I2C_MST_IF_CLK_364

Definition at line 56 of file MPU9250.h.

◆ MPU9250Registers

enum Boardcore::MPU9250::MPU9250Registers : uint8_t
Enumerator
REG_SMPLRT_DIV
REG_CONFIG
REG_GYRO_CONFIG
REG_ACCEL_CONFIG
REG_FIFO_EN
REG_I2C_MST_CTRL
REG_I2C_SLV0_ADDR
REG_I2C_SLV0_REG
REG_I2C_SLV0_CTRL
REG_I2C_SLV1_ADDR
REG_I2C_SLV1_REG
REG_I2C_SLV1_CTRL
REG_I2C_SLV2_ADDR
REG_I2C_SLV2_REG
REG_I2C_SLV2_CTRL
REG_I2C_SLV3_ADDR
REG_I2C_SLV3_REG
REG_I2C_SLV3_CTRL
REG_I2C_SLV4_ADDR
REG_I2C_SLV4_REG
REG_I2C_SLV4_DO
REG_I2C_SLV4_CTRL
REG_INT_PIN_CFG
REG_INT_ENABLE
REG_INT_STATUS
REG_ACCEL_XOUT_H
REG_ACCEL_XOUT_L
REG_ACCEL_YOUT_H
REG_ACCEL_YOUT_L
REG_ACCEL_ZOUT_H
REG_ACCEL_ZOUT_L
REG_TEMP_OUT_H
REG_TEMP_OUT_L
REG_GYRO_XOUT_H
REG_GYRO_XOUT_L
REG_GYRO_YOUT_H
REG_GYRO_YOUT_L
REG_GYRO_ZOUT_H
REG_GYRO_ZOUT_L
REG_EXT_SENS_DATA_00
REG_I2C_SLV0_DO
REG_I2C_SLV1_DO
REG_I2C_SLV2_DO
REG_I2C_SLV3_DO
REG_MST_DELAY_CTRL
REG_USER_CTRL
REG_PWR_MGMT_1
REG_PWR_MGMT_2
REG_WHO_AM_I

Definition at line 95 of file MPU9250.h.

Constructor & Destructor Documentation

◆ MPU9250()

Boardcore::MPU9250::MPU9250 ( SPIBusInterface & bus,
miosix::GpioPin cs,
SPIBusConfig config = getDefaultSPIConfig(),
unsigned short samplingRate = 100,
GyroFSR gyroFsr = GYRO_FSR_250DPS,
AccelFSR accelFsr = ACCEL_FSR_2G )
explicit

Instantiates the driver.

Parameters
highSpeedSpiClockDividerClocl diver for 20MHz SPI communication with the device

Definition at line 32 of file MPU9250.cpp.

Member Function Documentation

◆ getDefaultSPIConfig()

SPIBusConfig Boardcore::MPU9250::getDefaultSPIConfig ( )
static

Constructs the default config for SPI Bus.

Returns
the default SPIBusConfig

Definition at line 40 of file MPU9250.cpp.

◆ init()

bool Boardcore::MPU9250::init ( )
overridevirtual

Initialize the device.

The AK8963 is initialized such ad its data are read by the MPU9250 at each sample cycle, the host only needs to communicate with the MPU9250

Implements Boardcore::AbstractSensor.

Definition at line 48 of file MPU9250.cpp.

◆ sampleImpl()

MPU9250Data Boardcore::MPU9250::sampleImpl ( )
overrideprotectedvirtual

Read a data sample from the sensor. In case of errors, the method should return the last available correct sample.

Returns
sensor data sample

Implements Boardcore::Sensor< MPU9250Data >.

Definition at line 100 of file MPU9250.cpp.

◆ selfTest()

bool Boardcore::MPU9250::selfTest ( )
inlineoverridevirtual

Self test.

Returns
True if everything ok

Implements Boardcore::AbstractSensor.

Definition at line 221 of file MPU9250.h.

Member Data Documentation

◆ ACCELERATION_FS_MAP

const float Boardcore::MPU9250::ACCELERATION_FS_MAP[4] = {2.0, 4.0, 8.0, 16.0}

Definition at line 186 of file MPU9250.h.

◆ AK8963_ADDR

constexpr uint8_t Boardcore::MPU9250::AK8963_ADDR = 0xC
staticconstexpr

Definition at line 175 of file MPU9250.h.

◆ AK8963_REG_CNTL1_BIT_16_BIT_OUT

constexpr uint8_t Boardcore::MPU9250::AK8963_REG_CNTL1_BIT_16_BIT_OUT = 0xF
staticconstexpr

Definition at line 183 of file MPU9250.h.

◆ AK8963_REG_CNTL1_CONT_MES_MODE_1

constexpr uint8_t Boardcore::MPU9250::AK8963_REG_CNTL1_CONT_MES_MODE_1 = 0x12
staticconstexpr

Definition at line 179 of file MPU9250.h.

◆ AK8963_REG_CNTL1_CONT_MES_MODE_2

constexpr uint8_t Boardcore::MPU9250::AK8963_REG_CNTL1_CONT_MES_MODE_2 = 0x16
staticconstexpr

Definition at line 180 of file MPU9250.h.

◆ AK8963_REG_CNTL1_FUSE_ROM_ACCESS_MODE

constexpr uint8_t Boardcore::MPU9250::AK8963_REG_CNTL1_FUSE_ROM_ACCESS_MODE = 0xF
staticconstexpr

Definition at line 182 of file MPU9250.h.

◆ AK8963_REG_CNTL1_POWER_DOWN_MODE

constexpr uint8_t Boardcore::MPU9250::AK8963_REG_CNTL1_POWER_DOWN_MODE = 0x0
staticconstexpr

Definition at line 177 of file MPU9250.h.

◆ AK8963_REG_CNTL1_SELF_TEST_MODE

constexpr uint8_t Boardcore::MPU9250::AK8963_REG_CNTL1_SELF_TEST_MODE = 0x8
staticconstexpr

Definition at line 181 of file MPU9250.h.

◆ AK8963_REG_CNTL1_SINGLE_MES_MODE

constexpr uint8_t Boardcore::MPU9250::AK8963_REG_CNTL1_SINGLE_MES_MODE = 0x11
staticconstexpr

Definition at line 178 of file MPU9250.h.

◆ AK8963_REG_CNTL2_BIT_SRST

constexpr uint8_t Boardcore::MPU9250::AK8963_REG_CNTL2_BIT_SRST = 0x1
staticconstexpr

Definition at line 184 of file MPU9250.h.

◆ AK8963_REG_WHO_AM_I_VAL

constexpr uint8_t Boardcore::MPU9250::AK8963_REG_WHO_AM_I_VAL = 0x48
staticconstexpr

Definition at line 176 of file MPU9250.h.

◆ GYROSCOPE_FS_MAP

const float Boardcore::MPU9250::GYROSCOPE_FS_MAP[4] = {250, 500, 1000, 2000}

Definition at line 187 of file MPU9250.h.

◆ REG_CONFIG_DLPF_CFG_1

constexpr uint8_t Boardcore::MPU9250::REG_CONFIG_DLPF_CFG_1 = 0x1
staticconstexpr

Definition at line 167 of file MPU9250.h.

◆ REG_I2C_SLV_CTRL_EN

constexpr uint8_t Boardcore::MPU9250::REG_I2C_SLV_CTRL_EN = 0x80
staticconstexpr

Definition at line 169 of file MPU9250.h.

◆ REG_PWR_MGMT_1_BIT_H_RESET

constexpr uint8_t Boardcore::MPU9250::REG_PWR_MGMT_1_BIT_H_RESET = 0x80
staticconstexpr

Definition at line 170 of file MPU9250.h.

◆ REG_PWR_MGMT_1_CLKSEL_AUTO

constexpr uint8_t Boardcore::MPU9250::REG_PWR_MGMT_1_CLKSEL_AUTO = 0x1
staticconstexpr

Definition at line 171 of file MPU9250.h.

◆ REG_USER_CTRL_I2C_MST_EN

constexpr uint8_t Boardcore::MPU9250::REG_USER_CTRL_I2C_MST_EN = 0x20
staticconstexpr

Definition at line 168 of file MPU9250.h.

◆ REG_WHO_AM_I_VAL

constexpr uint8_t Boardcore::MPU9250::REG_WHO_AM_I_VAL = 0x71
staticconstexpr

Definition at line 172 of file MPU9250.h.

The documentation for this class was generated from the following files:
