Boardcore::VN100SpiData Struct Reference

Data type class for VN100 Spi. More...

#include <VN100SpiData.h>

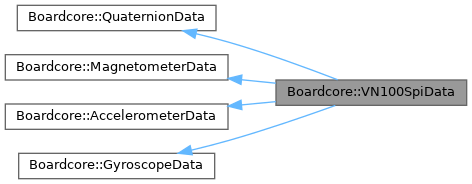

Inheritance diagram for Boardcore::VN100SpiData:

Collaboration diagram for Boardcore::VN100SpiData:

Public Member Functions
	VN100SpiData ()
	VN100SpiData (QuaternionData quat, MagnetometerData magData, AccelerometerData accData, GyroscopeData gyro, TemperatureData temp, PressureData pres)
Public Member Functions inherited from Boardcore::QuaternionData
	QuaternionData ()
	QuaternionData (uint64_t timestamp, float x, float y, float z, float w)
	QuaternionData (const QuaternionData &data)=default
	QuaternionData (const Eigen::Vector4f &quat)
	operator Eigen::Vector4f () const
Public Member Functions inherited from Boardcore::MagnetometerData
	MagnetometerData ()
	MagnetometerData (uint64_t timestamp, float x, float y, float z)
	MagnetometerData (const MagnetometerData &data)=default
	MagnetometerData (const Eigen::Vector3f &mag)
	operator Eigen::Vector3f () const
Public Member Functions inherited from Boardcore::AccelerometerData
	AccelerometerData ()
	AccelerometerData (uint64_t timestamp, float x, float y, float z)
	AccelerometerData (const AccelerometerData &data)=default
	AccelerometerData (const Eigen::Vector3f &acc)
	operator Eigen::Vector3f () const
Public Member Functions inherited from Boardcore::GyroscopeData
	GyroscopeData ()
	GyroscopeData (uint64_t timestamp, float x, float y, float z)
	GyroscopeData (const GyroscopeData &data)=default
	GyroscopeData (const Eigen::Vector3f &vel)
	operator Eigen::Vector3f () const

Static Public Member Functions
static constexpr auto	reflect ()
Static Public Member Functions inherited from Boardcore::QuaternionData
static constexpr auto	reflect ()
Static Public Member Functions inherited from Boardcore::MagnetometerData
static constexpr auto	reflect ()
Static Public Member Functions inherited from Boardcore::AccelerometerData
static constexpr auto	reflect ()
Static Public Member Functions inherited from Boardcore::GyroscopeData
static constexpr auto	reflect ()

Additional Inherited Members
Public Attributes inherited from Boardcore::QuaternionData
uint64_t	quaternionTimestamp = 0
float	quaternionX = 0
float	quaternionY = 0
float	quaternionZ = 0
float	quaternionW = 0
Public Attributes inherited from Boardcore::MagnetometerData
uint64_t	magneticFieldTimestamp = 0
float	magneticFieldX = 0
float	magneticFieldY = 0
float	magneticFieldZ = 0
Public Attributes inherited from Boardcore::AccelerometerData
uint64_t	accelerationTimestamp = 0
float	accelerationX = 0
float	accelerationY = 0
float	accelerationZ = 0
Public Attributes inherited from Boardcore::GyroscopeData
uint64_t	angularSpeedTimestamp = 0
float	angularSpeedX = 0
float	angularSpeedY = 0
float	angularSpeedZ = 0

Detailed Description

Data type class for VN100 Spi.

Units of measurement:

• Magnetometer [Gauss]
• Accelerometer [m/s^2]
• Gyroscope [rad/s]

Definition at line 40 of file VN100SpiData.h.

Constructor & Destructor Documentation

VN100SpiData() [1/2]

Boardcore::VN100SpiData::VN100SpiData ( )

inline

Definition at line 45 of file VN100SpiData.h.

VN100SpiData() [2/2]

Boardcore::VN100SpiData::VN100SpiData ( QuaternionData  quat, MagnetometerData  magData, AccelerometerData  accData, GyroscopeData  gyro, TemperatureData  temp, PressureData  pres  )

inline

Definition at line 52 of file VN100SpiData.h.

Member Function Documentation

reflect()

static constexpr auto Boardcore::VN100SpiData::reflect ( )

inlinestaticconstexpr

Definition at line 60 of file VN100SpiData.h.

---

The documentation for this struct was generated from the following file:

• src/shared/sensors/Vectornav/VN100/VN100SpiData.h
