Boardcore::Transceiver Class Reference

#include <Transceiver.h>

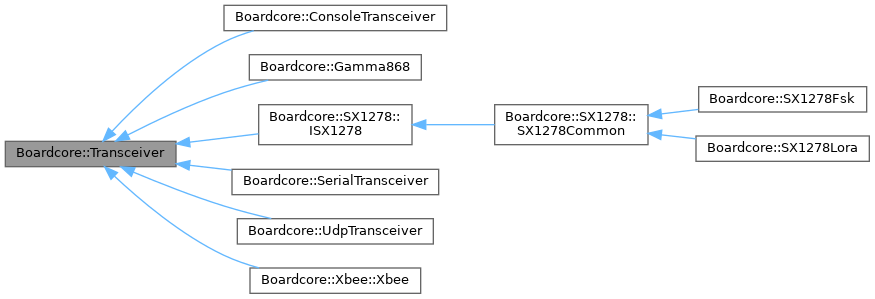

Inheritance diagram for Boardcore::Transceiver:

Public Member Functions
	Transceiver ()
virtual	~Transceiver ()
virtual bool	send (uint8_t *packet, size_t packetLength)=0
	Send a packet.
virtual ssize_t	receive (uint8_t *packet, size_t packetLength)=0
	Wait until a new packet is received.

Detailed Description

Definition at line 31 of file Transceiver.h.

Constructor & Destructor Documentation

Transceiver()

Boardcore::Transceiver::Transceiver ( )

inline

Definition at line 34 of file Transceiver.h.

~Transceiver()

virtual Boardcore::Transceiver::~Transceiver ( )

inlinevirtual

Definition at line 36 of file Transceiver.h.

Member Function Documentation

receive()

virtual ssize_t Boardcore::Transceiver::receive ( uint8_t *  packet, size_t  packetLength  )

pure virtual

Wait until a new packet is received.

Parameters

packet	Buffer to store the packet (at least packetLength bytes).
packetLength	Maximum length of the received data.

Returns

Size of the data received or -1 if failure

Implemented in Boardcore::Xbee::Xbee, Boardcore::SerialTransceiver, Boardcore::ConsoleTransceiver, Boardcore::UdpTransceiver, Boardcore::SX1278Fsk, Boardcore::SX1278Lora, and Boardcore::Gamma868.

send()

virtual bool Boardcore::Transceiver::send ( uint8_t *  packet, size_t  packetLength  )

pure virtual

Send a packet.

The function must block the thread until the packet is sent (successfully or not).

Parameters

packet	Pointer to the packet (at least packetLength bytes).
packetLength	Length of the packet to be sent.

Returns

True if the message was sent correctly.

Implemented in Boardcore::SerialTransceiver, Boardcore::ConsoleTransceiver, Boardcore::UdpTransceiver, Boardcore::SX1278Fsk, Boardcore::SX1278Lora, Boardcore::Gamma868, and Boardcore::Xbee::Xbee.

---

The documentation for this class was generated from the following file:

• src/shared/radio/Transceiver.h
