Boardcore::EventBroker Class Reference

#include <EventBroker.h>

Inheritance diagram for Boardcore::EventBroker:

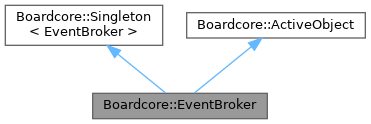

Collaboration diagram for Boardcore::EventBroker:

Public Member Functions
void	post (const Event &ev, uint8_t topic, EventHandlerBase *subscriber=nullptr)
uint16_t	postDelayed (const Event &ev, uint8_t topic, unsigned int delayMs)
void	removeDelayed (uint16_t id)
void	subscribe (EventHandlerBase *subscriber, uint8_t topic)
void	unsubscribe (EventHandlerBase *subscriber, uint8_t topic)
	Unsubscribe an EventHandler from a specific topic This function should be used only for testing purposes.
void	unsubscribe (EventHandlerBase *subscriber)
	Unsubribe an EventHandler from all the topics it is subscribed to. This function should be used only for testing purposes.
void	clearDelayedEvents ()
	Unschedules all pending events. This function should be used only for testing purposes.
	EventBroker ()
	Construct a new Event Broker object.
Public Member Functions inherited from Boardcore::Singleton< EventBroker >
	Singleton (const Singleton &)=delete
Singleton &	operator= (const Singleton &)=delete
Public Member Functions inherited from Boardcore::ActiveObject
	ActiveObject (unsigned int stacksize=miosix::STACK_DEFAULT_FOR_PTHREAD, miosix::Priority priority=miosix::MAIN_PRIORITY)
virtual	~ActiveObject ()
virtual bool	start ()
	Start the thread associated with this active object.
virtual void	stop ()
	Signals the runner thread to terminate and joins the thread.
bool	isRunning ()

Friends
class	Singleton< EventBroker >

Additional Inherited Members
Static Public Member Functions inherited from Boardcore::Singleton< EventBroker >
static EventBroker &	getInstance ()
Protected Member Functions inherited from Boardcore::Singleton< EventBroker >
	Singleton ()
Protected Member Functions inherited from Boardcore::ActiveObject
bool	shouldStop ()
	Tells whether or not the ActiveObject should stop its execution.
Protected Attributes inherited from Boardcore::ActiveObject
miosix::Thread *	thread = nullptr
	Gives access to the thread object.
std::atomic< bool >	stopFlag {false}
std::atomic< bool >	running {false}

Detailed Description

The EventBroker class implements the pub-sub paradigm to dispatch events to multiple objects. An object of type FSM can subscribe to a topic in the public topics enum and publish an event into it. The event will be posted in to each FSM object subscribed to that specific topic.

Definition at line 58 of file EventBroker.h.

Constructor & Destructor Documentation

EventBroker()

Boardcore::EventBroker::EventBroker

(

)

Construct a new Event Broker object.

Public access required for testing purposes. Use the singleton interface to access this class in production code.

Definition at line 31 of file EventBroker.cpp.

Member Function Documentation

clearDelayedEvents()

void Boardcore::EventBroker::clearDelayedEvents

(

)

Unschedules all pending events. This function should be used only for testing purposes.

Definition at line 127 of file EventBroker.cpp.

post()

void Boardcore::EventBroker::post	(	const Event &	ev,
		uint8_t	topic,
		EventHandlerBase *	subscriber = nullptr )

Posts an event to the specified topic.

Parameters

subscriber

If provided the event won't be forwarded to the given subscriber.

Definition at line 33 of file EventBroker.cpp.

postDelayed()

uint16_t Boardcore::EventBroker::postDelayed	(	const Event &	ev,
		uint8_t	topic,
		unsigned int	delayMs )

Posts an event after the specified delay.

Warning

Events cannot be posted with a delay shorter than EVENT_BROKER_MIN_DELAY

Parameters

event
topic
delayMs	Delay in milliseconds.

Returns

Unique id of the delayed event.

Definition at line 59 of file EventBroker.cpp.

removeDelayed()

void Boardcore::EventBroker::removeDelayed

(

uint16_t

id

)

Removes a delayed event before it is posted.

Parameters

id	The id returned by postDelayed(...).

Definition at line 94 of file EventBroker.cpp.

subscribe()

void Boardcore::EventBroker::subscribe	(	EventHandlerBase *	subscriber,
		uint8_t	topic )

Subscribe to a specific topic. DO NOT call it in response to an event, or it will cause a deadlock.

Parameters

subscriber
topic

Definition at line 107 of file EventBroker.cpp.

unsubscribe() [1/2]

void Boardcore::EventBroker::unsubscribe

(

EventHandlerBase *

subscriber

)

Unsubribe an EventHandler from all the topics it is subscribed to. This function should be used only for testing purposes.

Parameters

subscriber

Definition at line 120 of file EventBroker.cpp.

unsubscribe() [2/2]

void Boardcore::EventBroker::unsubscribe	(	EventHandlerBase *	subscriber,
		uint8_t	topic )

Unsubscribe an EventHandler from a specific topic This function should be used only for testing purposes.

Parameters

subscriber
topic

Definition at line 113 of file EventBroker.cpp.

Friends And Related Symbol Documentation

Singleton< EventBroker >

friend class Singleton< EventBroker >

friend

Definition at line 50 of file EventBroker.h.

---

The documentation for this class was generated from the following files:

• src/shared/events/EventBroker.h
• src/shared/events/EventBroker.cpp
