Boardcore::FSM< T > Class Template Reference

#include <FSM.h>

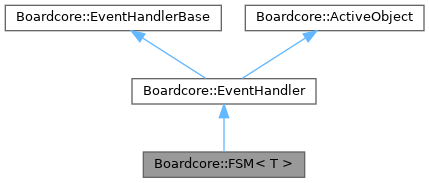

Inheritance diagram for Boardcore::FSM< T >:

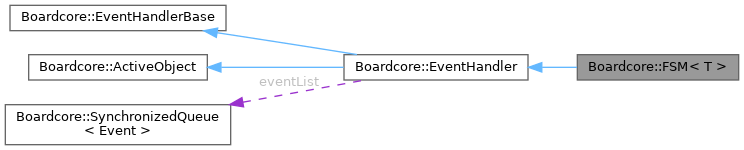

Collaboration diagram for Boardcore::FSM< T >:

Public Member Functions
	FSM (void(T::*initialState)(const Event &), unsigned int stacksize=miosix::STACK_DEFAULT_FOR_PTHREAD, miosix::Priority priority=miosix::MAIN_PRIORITY)
virtual	~FSM ()
void	transition (void(T::*nextState)(const Event &))
bool	testState (void(T::*testState)(const Event &))
	Test if the FSM is in the given state.
Public Member Functions inherited from Boardcore::EventHandler
	EventHandler (unsigned int stacksize=miosix::STACK_DEFAULT_FOR_PTHREAD, miosix::Priority priority=miosix::MAIN_PRIORITY)
virtual	~EventHandler ()
void	postEvent (const Event &ev) override
void	stop () override
	Signals the runner thread to terminate and joins the thread.
Public Member Functions inherited from Boardcore::EventHandlerBase
	EventHandlerBase ()
virtual	~EventHandlerBase ()
Public Member Functions inherited from Boardcore::ActiveObject
	ActiveObject (unsigned int stacksize=miosix::STACK_DEFAULT_FOR_PTHREAD, miosix::Priority priority=miosix::MAIN_PRIORITY)
virtual	~ActiveObject ()
virtual bool	start ()
	Start the thread associated with this active object.
bool	isRunning ()

Protected Member Functions
void	handleEvent (const Event &e) override
Protected Member Functions inherited from Boardcore::EventHandler
void	run () override
Protected Member Functions inherited from Boardcore::ActiveObject
bool	shouldStop ()
	Tells whether or not the ActiveObject should stop its execution.

Additional Inherited Members
Protected Attributes inherited from Boardcore::EventHandler
SynchronizedQueue< Event >	eventList
Protected Attributes inherited from Boardcore::ActiveObject
miosix::Thread *	thread = nullptr
	Gives access to the thread object.
std::atomic< bool >	stopFlag {false}
std::atomic< bool >	running {false}

Detailed Description

template<class T>
class Boardcore::FSM< T >

Definition at line 35 of file FSM.h.

Constructor & Destructor Documentation

FSM()

template<class T >

Boardcore::FSM< T >::FSM	(	void(T::*)(const Event &)	initialState,
		unsigned int	stacksize = miosix::STACK_DEFAULT_FOR_PTHREAD,
		miosix::Priority	priority = miosix::MAIN_PRIORITY )

Definition at line 62 of file FSM.h.

~FSM()

template<class T >

Boardcore::FSM< T >::~FSM ( )

virtual

Definition at line 72 of file FSM.h.

Member Function Documentation

handleEvent()

template<class T >

void Boardcore::FSM< T >::handleEvent ( const Event & e )

overrideprotectedvirtual

Implements Boardcore::EventHandler.

Definition at line 91 of file FSM.h.

testState()

template<class T >

bool Boardcore::FSM< T >::testState

(

void(T::*)(const Event &)

testState

)

Test if the FSM is in the given state.

Parameters

testState

State to test.

Definition at line 85 of file FSM.h.

transition()

template<class T >

void Boardcore::FSM< T >::transition

(

void(T::*)(const Event &)

nextState

)

Definition at line 75 of file FSM.h.

---

The documentation for this class was generated from the following file:

• src/shared/events/FSM.h
