external_interrupts.h File Reference

#include <interfaces/gpio.h>

Include dependency graph for external_interrupts.h:

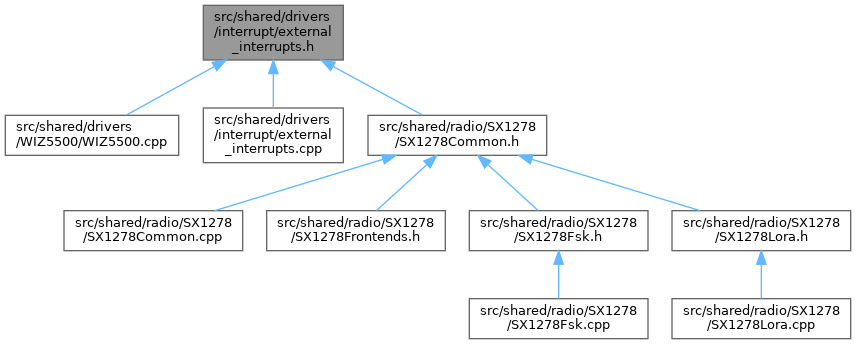

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum class	InterruptTrigger { RISING_EDGE , FALLING_EDGE , RISING_FALLING_EDGE }

Functions
void	enableExternalInterrupt (unsigned int gpioPort, unsigned int gpioNum, InterruptTrigger trigger, unsigned int priority=15)
	Enables external interrupts on the provided pin. Remember to set the GPIO to input mode!
void	enableExternalInterrupt (miosix::GpioPin gpio, InterruptTrigger trigger, unsigned int priority=15)
	Enables external interrupts on the provided pin. Remember to set the GPIO to input mode!
void	disableExternalInterrupt (unsigned int gpioPort, unsigned int gpioNum)
	Disables external interrupts on the provided pin.
void	disableExternalInterrupt (miosix::GpioPin gpio)
	Disables external interrupts on the provided pin.
void	changeInterruptTrigger (unsigned int gpioPort, unsigned int gpioNum, InterruptTrigger trigger)
	Changes interrupt trigger on an enabled interrupt.
void	changeInterruptTrigger (miosix::GpioPin gpio, InterruptTrigger trigger)
	Changes interrupt trigger on an enabled interrupt.

Enumeration Type Documentation

InterruptTrigger

enum class InterruptTrigger

strong

Enumerator
RISING_EDGE
FALLING_EDGE
RISING_FALLING_EDGE

Definition at line 27 of file external_interrupts.h.

Function Documentation

changeInterruptTrigger() [1/2]

void changeInterruptTrigger ( miosix::GpioPin gpio, InterruptTrigger trigger )

inline

Changes interrupt trigger on an enabled interrupt.

Parameters

gpio	Pin (eg: PC4)
trigger	Interrupt detection trigger (rising edge, falling or both)

Definition at line 97 of file external_interrupts.h.

changeInterruptTrigger() [2/2]

void changeInterruptTrigger	(	unsigned int	gpioPort,
		unsigned int	gpioNum,
		InterruptTrigger	trigger )

Changes interrupt trigger on an enabled interrupt.

Parameters

gpioPort	Port of the pin (eg: GPIOC_BASE)
gpioNum	Pin number (eg: 4 for PC4)
trigger	Interrupt detection trigger (rising edge, falling or both)

Definition at line 411 of file external_interrupts.cpp.

disableExternalInterrupt() [1/2]

void disableExternalInterrupt ( miosix::GpioPin gpio )

inline

Disables external interrupts on the provided pin.

Parameters

gpio	Pin (eg: PC4)

Definition at line 76 of file external_interrupts.h.

disableExternalInterrupt() [2/2]

void disableExternalInterrupt	(	unsigned int	gpioPort,
		unsigned int	gpioNum )

Disables external interrupts on the provided pin.

Parameters

gpioPort	Port of the pin (eg: GPIOC_BASE)
gpioNum	Pin number (eg: 4 for PC4)

Definition at line 396 of file external_interrupts.cpp.

enableExternalInterrupt() [1/2]

void enableExternalInterrupt ( miosix::GpioPin gpio, InterruptTrigger trigger, unsigned int priority = 15 )

inline

Enables external interrupts on the provided pin. Remember to set the GPIO to input mode!

Parameters

gpio	Pin (eg: PC4)
trigger	Interrupt detection trigger (rising edge, falling or both)
priority	Interrupt priority [0-15], 0 = Highest priority

Definition at line 55 of file external_interrupts.h.

enableExternalInterrupt() [2/2]

void enableExternalInterrupt	(	unsigned int	gpioPort,
		unsigned int	gpioNum,
		InterruptTrigger	trigger,
		unsigned int	priority = 15 )

Enables external interrupts on the provided pin. Remember to set the GPIO to input mode!

Parameters

gpioPort	Port of the pin (eg: GPIOC_BASE)
gpioNum	Pin number (eg: 4 for PC4)
trigger	Interrupt detection trigger (rising edge, falling or both)
priority	Interrupt priority [0-15], 0 = Highest priority

Definition at line 366 of file external_interrupts.cpp.
