Boardcore::HSM< T > Class Template Reference

#include <HSM.h>

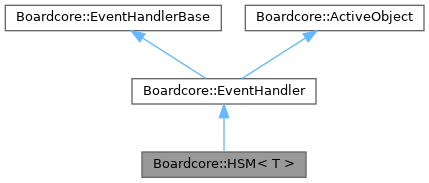

Inheritance diagram for Boardcore::HSM< T >:

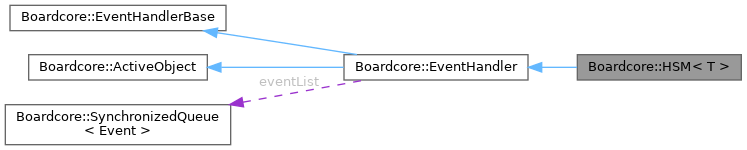

Collaboration diagram for Boardcore::HSM< T >:

Public Types
typedef State(T::*	StateHandler) (const Event &)

Public Member Functions
	HSM (StateHandler initialState, unsigned int stacksize=miosix::STACK_DEFAULT_FOR_PTHREAD, miosix::Priority priority=miosix::MAIN_PRIORITY)
virtual	~HSM ()
bool	start () override
	Start the thread associated with this active object.
State	transition (StateHandler nextState)
	Performs a transition to the specified state.
State	tranSuper (StateHandler superState)
	Performs a transaction to the specified super state.
bool	testState (StateHandler testState)
	Test if the state machine is in the specified state.
Public Member Functions inherited from Boardcore::EventHandler
	EventHandler (unsigned int stacksize=miosix::STACK_DEFAULT_FOR_PTHREAD, miosix::Priority priority=miosix::MAIN_PRIORITY)
virtual	~EventHandler ()
void	postEvent (const Event &ev) override
void	stop () override
	Signals the runner thread to terminate and joins the thread.
Public Member Functions inherited from Boardcore::EventHandlerBase
	EventHandlerBase ()
virtual	~EventHandlerBase ()
Public Member Functions inherited from Boardcore::ActiveObject
	ActiveObject (unsigned int stacksize=miosix::STACK_DEFAULT_FOR_PTHREAD, miosix::Priority priority=miosix::MAIN_PRIORITY)
virtual	~ActiveObject ()
bool	isRunning ()

Public Attributes
StateHandler	state
StateHandler	temp

Protected Member Functions
void	handleEvent (const Event &event) override
	Makes the current state handle the event and changes the state accordingly.
State	state_top (const Event &)
Protected Member Functions inherited from Boardcore::EventHandler
void	run () override
Protected Member Functions inherited from Boardcore::ActiveObject
bool	shouldStop ()
	Tells whether or not the ActiveObject should stop its execution.

Additional Inherited Members
Protected Attributes inherited from Boardcore::EventHandler
SynchronizedQueue< Event >	eventList
Protected Attributes inherited from Boardcore::ActiveObject
miosix::Thread *	thread = nullptr
	Gives access to the thread object.
std::atomic< bool >	stopFlag {false}
std::atomic< bool >	running {false}

Detailed Description

template<class T>
class Boardcore::HSM< T >

Definition at line 50 of file HSM.h.

Member Typedef Documentation

StateHandler

template<class T >

typedef State(T::* Boardcore::HSM< T >::StateHandler) (const Event &)

Definition at line 53 of file HSM.h.

Constructor & Destructor Documentation

HSM()

template<class T >

Boardcore::HSM< T >::HSM ( StateHandler initialState, unsigned int stacksize = miosix::STACK_DEFAULT_FOR_PTHREAD, miosix::Priority priority = miosix::MAIN_PRIORITY )

inline

Constructor.

Parameters

initialState

Initial state of the machine.

Definition at line 60 of file HSM.h.

~HSM()

template<class T >

virtual Boardcore::HSM< T >::~HSM ( )

inlinevirtual

Definition at line 69 of file HSM.h.

Member Function Documentation

handleEvent()

template<class T >

void Boardcore::HSM< T >::handleEvent ( const Event & event )

inlineoverrideprotectedvirtual

Makes the current state handle the event and changes the state accordingly.

Parameters

event

The event to handle.

Implements Boardcore::EventHandler.

Definition at line 120 of file HSM.h.

start()

template<class T >

bool Boardcore::HSM< T >::start ( )

inlineoverridevirtual

Start the thread associated with this active object.

Warning

The method is not thread safe.

Call stop() to terminate execution of the thread.

Returns

true if the thread has been started.

Reimplemented from Boardcore::ActiveObject.

Definition at line 71 of file HSM.h.

state_top()

template<class T >

State Boardcore::HSM< T >::state_top ( const Event & )

inlineprotected

Definition at line 432 of file HSM.h.

testState()

template<class T >

bool Boardcore::HSM< T >::testState ( StateHandler testState )

inline

Test if the state machine is in the specified state.

Parameters

testState

State to test.

Returns

True if the state machine is in the given state.

Definition at line 106 of file HSM.h.

transition()

template<class T >

State Boardcore::HSM< T >::transition ( StateHandler nextState )

inline

Performs a transition to the specified state.

Parameters

nextState

Target state.

Definition at line 83 of file HSM.h.

tranSuper()

template<class T >

State Boardcore::HSM< T >::tranSuper ( StateHandler superState )

inline

Performs a transaction to the specified super state.

Parameters

superState

Target super state.

Definition at line 94 of file HSM.h.

Member Data Documentation

state

template<class T >

StateHandler Boardcore::HSM< T >::state

Definition at line 110 of file HSM.h.

temp

template<class T >

StateHandler Boardcore::HSM< T >::temp

Definition at line 111 of file HSM.h.

---

The documentation for this class was generated from the following file:

• src/shared/events/HSM.h
